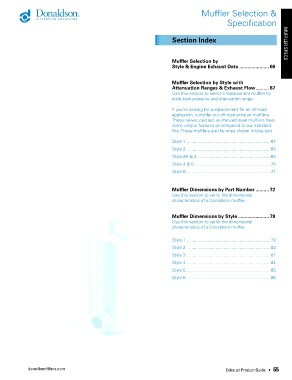

P. 67
Muffler Selection &
Specification
Section Index MUFFLER SPECS
Muffler Selection by
Style & Engine Exhaust Data ...................... 66
Muffler Selection by Style with
Attenuation Ranges & Exhaust Flow .......... 67
Use this section to select a replacement muffler by
style back pressure and attenuation range.
If you’re looking for a replacement for an off-road
application, consider our off-road exhaust mufflers.
These newer, painted, aluminized steel mufflers have
some unique features as compared to our standard
line. These mufflers are the ones shown in blue text.
Style 1 .....................................................................67
Style 2 ....................................................................68
Style 2A & 3 ............................................................69
Style 4 & 5 ...............................................................70
Style 6 .....................................................................71
Muffler Dimensions by Part Number .......... 72
Use this section to verify the dimensional
characteristics of a Donaldson muffler.
Muffler Dimensions by Style ....................... 79
Use this section to verify the dimensional
characteristics of a Donaldson muffler.
Style 1 .....................................................................79
Style 2 ....................................................................82
Style 3 .....................................................................81
Style 4 .....................................................................84
Style 5 .....................................................................85
Style 6 .....................................................................86
donaldsonfilters.com Exhaust Product Guide • 65
