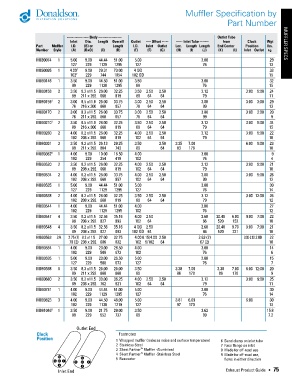

Page 77 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Muffler Specification by
Part Number

----------------- Body ------------------ Outlet Tube
Inlet Dia. Length Overall Outlet ---- Offset --- -- ----- Inlet Tube ------- from Clock Wgt
Part Muffler I.D. (B) or Length I.D. Inlet Outlet Loc. Length Length End Center Position lbs. MUFFLER SPECS
Number Style (A) (BxO) (C) (D) (E) (F) (G) (H) (I) (J) (K) (L) Inlet Outlet kg

M090074 1 5.00 9.00 44.44 51.00 5.00 3.00 29
127 229 1129 1295 127 76 13
M090095 1 4.00 7 9.00 29.31 73.00 4 OD 33
102 7 229 744 1854 102 OD 15
M090146 1 3.50 9.00 44.50 51.00 3.50 3.00 32
89 229 1130 1295 89 76 15
M090158 2 3.50 8.3 x11.5 26.00 32.25 3.50 2.50 2.50 3.12 3:00 9:00 24
89 211 x 292 660 819 89 64 64 79 11
1
M090159 2 3.00 8.5 x11.8 26.00 33.75 3.00 2.50 2.50 3.88 3:00 3:00 29
76 216 x 300 660 857 76 64 64 99 13
M090170 2 3.00 8.3 x11.5 26.00 33.75 3.00 2.50 2.50 3.88 3:00 3:00 20
76 211 x 292 660 857 76 64 64 99 9
M090210 2 3.50 8.5 x11.8 26.00 32.25 3.50 2.50 2.50 3.12 3:00 9:00 34
1
89 216 x 300 660 819 89 64 64 79 15
M090280 2 4.00 8.2 x11.5 26.00 32.25 4.00 2.50 2.50 3.12 3:00 9:00 22
102 208 x 292 660 819 102 64 64 79 10
M090301 3 3.50 8.3 x11.5 26.13 29.25 3.50 2.50 3.25 7.00 6:00 9:00 23
89 211 x 292 664 743 89 64 83 178 10
M090362 5 1 4.00 9.00 10.00 16.50 4.00 3.00 9
102 229 254 419 102 76 4
M090520 2 3.50 8.2 x11.5 26.00 32.25 4.00 2.50 2.50 3.12 3:00 9:00 21
89 208 x 292 660 819 102 64 64 79 10
M090534 2 4.00 8.2 x11.5 26.00 33.75 4.00 2.50 2.50 3.88 3:00 9:00 26
102 208 x 292 660 857 102 64 64 99 12
M090535 1 5.00 9.00 44.44 51.00 5.00 3.00 30
127 229 1129 1295 127 76 14
M090538 2 4.00 8.2 x11.5 26.00 32.25 3.50 2.50 2.50 3.12 3:00 12:00 26
102 208 x 292 660 819 89 64 64 79 12
M090544 1 4.00 9.00 44.44 51.00 4.00 3.00 27
102 229 1129 1295 102 76 12
M090547 4 3.50 8.2 x11.5 32.56 35.16 4.00 2.50 2.60 20.48 6.00 9:00 7:00 22
89 208 x 292 827 893 102 64 66 520 152 10
M090548 4 3.50 8.2 x11.5 32.56 35.16 4 OD 2.50 2.60 20.48 8.70 3:00 7:30 21
89 208 x 292 827 893 102 OD 64 66 520 221 10
M090563 2A 2.75 (2) 8.2 x11.5 27.00 32.75 4.00 0.15/4.00 2.50 2.63 (2) 9:00-3:00 3:00 22
70 (2) 208 x 292 686 832 102 9/102 64 67 (2) 10
M090594 1 4.00 9.00 20.00 26.50 4.00 3.00 14
102 229 508 673 102 76 6
M090595 1 5.00 9.00 20.00 26.50 5.00 3.00 15
127 229 508 673 127 76 7
M090598 6 3.50 8.3 x11.5 26.00 26.00 3.50 3.38 7.00 3.38 7.00 6:00 12:00 20
89 211 x 292 660 660 89 86 178 86 178 9
M090680 2 3.50 8.2 x11.5 30.00 36.25 4.00 2.50 2.50 3.12 3:00 9:00 25
89 208 x 292 762 921 102 64 64 79 11
M090781 1 4.00 9.00 44.44 51.00 5.00 3.00 30
102 229 1129 1295 127 76 14
M090823 3 4.00 9.00 44.50 48.00 5.00 3.81 6.69 6:00 30
102 229 1130 1219 127 97 170 13
M091046 8 1 3.50 9.00 21.75 29.00 3.50 3.62 15.8
89 229 552 737 89 89 7.2

Outlet End
Clock Footnotes
Position 1 Wrapped muffler (reduces noise and surface temperature) 6 Band clamp on inlet tube
2 Stainless Steel 7 Face flange on inlet
™
3 Silent Partner Muffler -Aluminized 8 Made for off-road use
4 Silent Partner Muffler -Stainless Steel 9 Made for off-road use,
™
5 Resonator flows in either direction
Inlet End Exhaust Product Guide • 75
