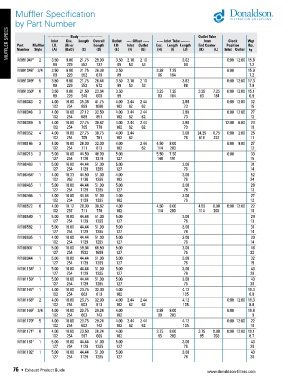

Muffler Specification

MUFFLER SPECS by Part Number Length Overall Outlet ---- Offset --- -- ----- Inlet Tube ------- from (L) Inlet Outlet kg

----------------- Body ------------------

Outlet Tube

Clock Wgt
Dia.
Inlet

(B) or
Muffler
Length

Loc. Length Length End Center Position
Inlet Outlet
I.D.
I.D.
lbs.
Part
(E)
(D)
Style
(A)
(C)
(BxO)
(F)
(I)
(H)
(K)
(J)
(G)
Number
8
2
M091047
3.50
229
89 9.00 21.75 29.00 3.50 2.10 2.10 3.62 6:00 12:00 15.8
7.2
552
737
89
53
53
89
M091048 3/4 3.50 9.00 21.75 26.38 3.50 3.38 7.25 6:00 15.9
9
89 229 552 670 89 86 184 7.2
8
M091049 5 3.50 9.00 21.75 26.44 3.50 2.10 2.10 3.62 6:00 12:00 17.3
89 229 552 672 89 53 53 89 7.9
M091050 8 6 3.50 9.00 21.50 23.64 3.50 3.25 7.25 3.25 7.25 6:00 12:00 15.1
89 229 546 600 89 83 184 83 184 6.9
M100043 2 4.00 10.00 35.38 41.75 4.00 2.44 2.44 2.88 6:00 12:00 32
102 254 899 1060 102 62 62 73 15
M100048 2 4.00 10.00 27.12 33.50 4.00 2.44 2.44 2.88 6:00 12:00 27
102 254 689 851 102 62 62 73 12
M100049 5 4.00 10.00 27.75 30.62 4.00 2.44 2.44 2.88 12:00 6:00 23
102 254 705 778 102 62 62 73 10
M100052 4 4.00 10.00 27.75 30.75 4.00 2.44 3.00 24.25 8.75 6:00 2:00 25
102 254 705 781 102 62 76 616 222 11
M100146 3 4.00 10.00 28.00 32.00 4.00 2.44 4.50 8.00 6:00 9:00 27
102 254 711 813 102 62 114 203 12
M100213 3 5.00 10.00 44.50 48.00 5.00 5.50 7.50 6:00 33
127 254 1130 1219 127 140 191 15
M100463 1 5.00 10.00 44.44 51.00 5.00 3.00 31
127 254 1129 1295 127 76 14
M100464 1 1 4.00 10.33 44.50 51.00 4.00 3.00 52
102 262 1130 1295 102 76 24
M100465 1 5.00 10.00 44.44 51.00 5.00 3.00 28
127 254 1129 1295 127 76 13
M100466 1 4.00 10.00 44.44 51.00 4.00 3.00 27
102 254 1129 1295 102 76 12
M100572 6 4.00 10.12 28.00 30.62 4.00 4.50 8.00 4.50 8.00 6:00 12:00 22
102 257 711 778 102 114 203 114 203 10
M100580 1 5.00 10.00 44.44 51.00 5.00 3.00 29
127 254 1129 1295 127 76 13
M100582 1 5.00 10.00 44.44 51.00 5.00 3.00 31
127 254 1129 1295 127 76 14
M100695 1 4.00 10.00 44.44 51.00 5.00 3.00 30
102 254 1129 1295 127 76 14
M100807 1 5.00 10.00 59.94 66.50 5.00 3.00 48
127 254 1522 1689 127 76 22
M100944 1 5.00 10.00 44.44 51.00 5.00 3.00 32
127 254 1129 1295 127 76 15
M101158 4 1 5.00 10.00 44.44 51.00 5.00 3.00 43
127 254 1129 1295 127 76 20
M101159 4 1 5.00 10.00 44.44 51.00 5.00 3.00 43
127 254 1129 1295 127 76 20
M101167 8 1 4.00 10.00 23.75 32.00 4.00 4.12 19.3
102 254 603 813 102 105 8.8
M101168 2 4.00 10.00 23.75 32.00 4.00 2.44 2.44 4.12 6:00 12:00 19.3
8
102 254 603 813 102 62 62 105 8.8
9
M101169 3/4 4.00 10.00 23.75 29.24 4.00 3.88 8.00 6:00 19.8
102 254 603 743 102 99 203 9
M101170 5 4.00 10.00 23.75 29.24 4.00 2.44 2.44 4.12 6:00 12:00 22
8
102 254 603 743 102 62 62 105 10
8
M101171 6 4.00 10.00 23.50 26.24 4.00 3.75 8.00 3.75 8.00 6:00 12:00 19.1
102 254 597 666 102 95 203 95 203 8.7
M101181 3 1 5.00 10.00 44.44 51.00 5.00 3.00 43
127 254 1129 1295 127 76 20
M101182 3 1 5.00 10.00 44.44 51.00 5.00 3.00 43
127 254 1129 1295 127 76 20
