Catalog #AU03-0928/NA Sensors

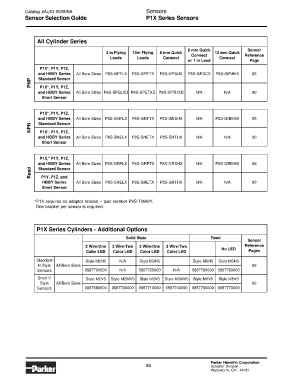

Sensor Selection Guide P1X Series Sensors

All Cylinder Series

8 mm Quick Sensor
3 m Flying 10m Flying 8 mm Quick Connect 12 mm Quick Reference
Leads Leads Connect Connect
w/ 1 m Lead Page
P1X*, P1Y, P1Z,
and HBBY Series All Bore Sizes P8S-GPFLX P8S-GPFTX P8S-GPSHX P8S-GPSCX P8S-GPMHX 88
PNP Standard Sensor
P1X*, P1Y, P1Z,
and HBBY Series All Bore Sizes P8S-SPELXD P8S-SPETXD P8S-SPTHXD N/A N/A 90
Short Sensor

P1X*, P1Y, P1Z,
and HBBY Series All Bore Sizes P8S-GNFLX P8S-GNFTX P8S-GNSHX N/A P8S-GNMHX 88
NPN Standard Sensor
P1X*, P1Y, P1Z,
and HBBY Series All Bore Sizes P8S-SNELX P8S-SNETX P8S-SNTHX N/A N/A 90
Short Sensor

P1X,* P1Y, P1Z,
and HBBY Series All Bore Sizes P8S-GRFLX P8S-GRFTX P8S-GRSHX N/A P8S-GRMHX 89
Reed Standard Sensor
P1Y, P1Z, and
HBBY Series All Bore Sizes P8S-SRELX P8S-SRETX P8S-SRTHX N/A N/A 90
Short Sensor

*P1X requires an adaptor bracket – part number P8S-TMA0Y.
One bracket per sensor is required.

P1X Series Cylinders - Additional Options

Solid State Reed
Sensor
2 Wire/One 2 Wire/Two 3 Wire/One 3 Wire/Two Reference
No LED
Color LED Color LED Color LED Color LED Pages
Standard Style M2H5 N/A Style M3H5 Style M0H5 Style M5H5
H Style All Bore Sizes 92
Sensors 0887700000 N/A 0887720000 N/A 0887760000 0887780000
Short V Style M2V5 Style M2WV5 Style M2V5 Style M3WV5 Style M0V5 Style M5V5
Style All Bore Sizes 92
Sensors 0887690000 0887730000 0887710000 0887740000 0887750000 0887770000
