Page 188 - Parker - Republic/Manatrol (Hydraulic and Pneumatic Control Valves)

Catalog HY14-3000/US Pressure Control Valves

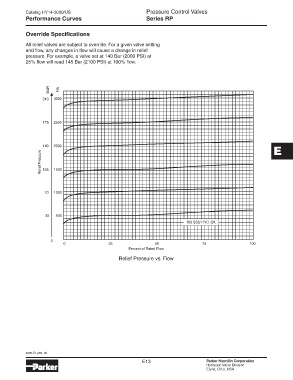

Performance Curves Series RP

Override Specifications

All relief valves are subject to override. For a given valve setting
and flow, any changes in flow will cause a change in relief
pressure. For example, a valve set at 140 Bar (2000 PSI) at
25% flow will read 145 Bar (2100 PSI) at 100% flow.

E

3000-E1.p65, dd
E13 Parker Hannifin Corporation
Hydraulic Valve Division
Elyria, Ohio, USA
