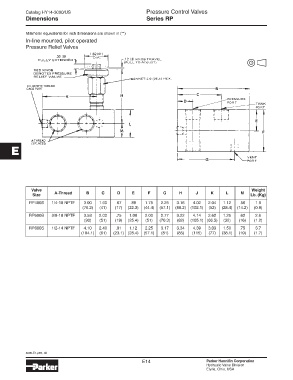

Page 189 - Parker - Republic/Manatrol (Hydraulic and Pneumatic Control Valves)

Catalog HY14-3000/US Pressure Control Valves
Dimensions Series RP

Millimeter equivalents for inch dimensions are shown in (**)
Dimensions
In-line mounted, pilot operated
Pressure Relief Valves

E

Valve Weight
Size A-Thread B C D E F G H J K L M Lb. (Kg)
RP400S 1/4-18 NPTF 3.00 1.60 .67 .88 1.75 2.25 3.16 4.02 2.04 1.12 .56 1.9
(76.2) (41) (17) (22.3) (44.4) (57.1) (80.2) (102.1) (52) (28.4) (14.2) (0.8)
RP600S 3/8-18 NPTF 3.53 2.00 .75 1.00 2.00 2.77 3.22 4.14 2.62 1.25 .62 2.6
(90) (51) (19) (25.4) (51) (70.3) (82) (105.1) (66.5) (32) (16) (1.2)
RP800S 1/2-14 NPTF 4.10 2.40 .91 1.12 2.25 3.17 3.34 4.39 3.03 1.50 .75 3.7
(104.1) (61) (23.1) (28.4) (57.1) (81) (85) (115) (77) (38.1) (19) (1.7)
