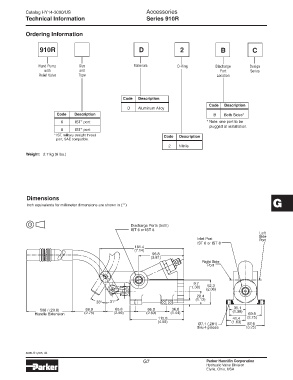

Page 210 - Parker - Republic/Manatrol (Hydraulic and Pneumatic Control Valves)

Catalog HY14-3000/US Accessories
Technical Information Series 910R

Ordering Information

910R D 2 B C

Hand Pump Size Materials O-Ring Discharge Design
with and Port Series
Relief Valve Type Location

Code Description
Code Description
D Aluminum Alloy
Code Description B Both Sides*
6 IST* port * Note: one port to be
plugged at installation.
8 IST* port
* IST, military straight thread Code Description
port, SAE compatible.
2 Nitrile
Weight: 2.7 kg (6 lbs.)

Dimensions H
Inch equivalents for millimeter dimensions are shown in (**) G

Discharge Ports (both)
IST 6 or IST 8
Left
Side
Inlet Port Port
IST 6 or IST 8
181.4
(7.14)
96.8
(3.81)
Right Side
Port

9.7
(.38) 52.3
(2.06)
28.4
(1.12)
33° 31°
35.1
508 / (20.0) 69.9 65.8 66.8 36.6 (1.38)
Handle Extension (2.75) (2.59) (2.63) (1.44) 69.9
115.8 41.4 (2.75)
(4.56) Ø7.1 (.281) (1.63) 82.6
thru 4 places (3.25)
