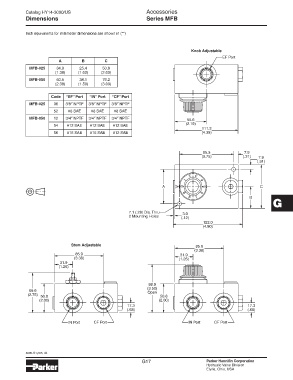

Page 220 - Parker - Republic/Manatrol (Hydraulic and Pneumatic Control Valves)

Catalog HY14-3000/US Accessories
Dimensions Series MFB

Inch equivalents for millimeter dimensions are shown in (**)

Knob Adjustable
EF Port
A B C
MFB-025 34.9 25.4 50.8
(1.38) (1.00) (2.00)
MFB-050 60.5 38.1 76.2
(2.38) (1.50) (3.00)

Code “EF” Port “IN” Port “CF” Port
MFB-025 06 3/8″ NPTF 3/8″ NPTF 3/8″ NPTF
52 #8 SAE #8 SAE #8 SAE
MFB-050 12 3/4″ NPTF 3/4″ NPTF 3/4″ NPTF 55.6
54 #12 SAE #12 SAE #12 SAE (2.19)
111.3
56 #16 SAE #16 SAE #12 SAE (4.38)

95.3 7.9
(3.75) (.31) 7.9
(.31)

A C

B H
G

7.1 (.28) Dia. Thru 3.0
2 Mounting Holes (.12)
122.0
(4.80)

Stem Adjustable 85.9
(3.38)
85.9 31.9
(3.38) (1.26)
31.9
(1.26)

88.9
(3.50)
69.9 Open
(2.75) 50.8 50.8
(2.00) (2.00)
17.3 17.3
(.68) (.68)

IN Port CF Port IN Port CF Port

3000-G1.p65, dd
G17 Parker Hannifin Corporation
Hydraulic Valve Division
Elyria, Ohio, USA
