Page 56 - Parker - Hydraulic Motor/Pump

Catalogue HY30-8249/UK Hydraulic motor/pump

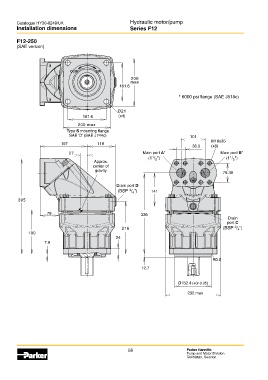

Installation dimensions Series F12

F12-250
(SAE version)

ccw cw
200
max
161.6

* 6000 psi flange (SAE J518c)

Ø21
161.6 (x4)
200 max
Type S mounting flange
SAE ‘D’ (SAE J744c) 101
M16x35
197 118
36.5 (x8)
27 Main port A* Main port B*
1
1
(1 / ") (1 / ")
Approx. 2 2
center of
gravity
79.38
Drain port D
3
(BSP / ") 141
4
395

79 336
Drain
port C
3
216 (BSP / ")
4
180
24
7.9

R0.8

12.7

Ø152.4 (+0/-0.05)
232 max

56 Parker Hannifin
Pump and Motor Division
Trollhättan, Sweden
