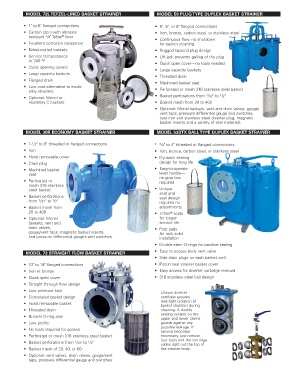

Page 3 - Eaton - Standard Cast Pipeline Strainers

MODEL 72L TEFZEL-LINED BASKET STRAINER MODEL 50 PLUG TYPE DUPLEX BASKET STRAINER

• 1" to 6" flanged connections • 5", 6", or 8" flanged connections
• Carbon steel with abrasion • Iron, bronze, carbon steel, or stainless steel
resistant 1 /8" Tefzel liner • Continuous flow, no shutdown
®
• Excellent corrosion resistance for basket cleaning
• Tefzel-coated baskets • Rugged tapered plug design
• Service temperatures • Lift jack prevents galling of the plug
to 300 °F • Quick open cover—no tools needed
• Quick opening covers • Large capacity baskets
• Large capacity baskets • Threaded drain
• Flanged drain • Machined basket seat
• Low cost alternative to exotic
alloy strainers • Perforated or mesh 316 stainless steel basket
• Optional: Monel or • Basket perforations from 1 /32" to 1 /2"
Hastelloy C baskets • Basket mesh from 20 to 400
• Optional: Monel baskets, vent and drain valves, gauge/
vent taps, pressure differential gauge and switches,
cast iron and stainless steel diverter plug, magnetic
basket inserts and a variety of seal materials

MODEL 30R ECONOMY BASKET STRAINER MODEL 53BTX BALL TYPE DUPLEX BASKET STRAINER

• 1- 1 /2" to 8" threaded or flanged connections • 3 /4" to 4" threaded or flanged connections
• Iron • Iron, bronze, carbon steel, or stainless steel
• Hand removable cover • Dynamic sealing
• Drain plug design for long life
• Machined basket • Easy-to-operate
seat lever handle—
no gear box
• Perforated or required
mesh 316 stainless
steel basket • Unique
• Basket perforations seat and
seal design
from 1 /32" to 1 /2" requires no
• Basket mesh from adjustments
20 to 400 • Teflon seats
®
• Optional: Monel for longer
baskets, vent and service life
drain valves, • Foot pads
gauge/vent taps, magnetic basket inserts, for rock solid
and pressure differential gauges and switches installation
• Double-stem O-rings for positive sealing
MODEL 73 STRAIGHT FLOW BASKET STRAINER • Easy to access body vent valve
• Side drain plugs on each basket well
• 10" to 18" flanged connections • Piston seal strainer basket cover
• Iron or bronze • Easy access for diverter cartridge removal
• Quick open cover • 316 stainless steel ball design
• Straight through flow design
• Low pressure loss
Unique diverter
• Convoluted basket design cartridge assures
leak-tight isolation of
• Hand removable basket
basket chamber during
• Threaded drain cleaning. A double
sealing system on the
• Buna-N O-ring seal
upper and lower stems
• Low profile guards against any
possible leakage. If
• No tools required for access
service becomes
• Perforated or mesh 316 stainless steel basket necessary, just remove
four bolts and the cartridge
• Basket perforations from 1 /32" to 1 /2"
slides right out the top of
• Basket mesh of 20, 40, or 60 the strainer body.
• Optional: vent valves, drain valves, gauge/vent
taps, pressure differential gauge and switches
