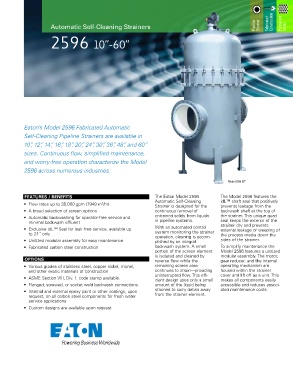

Page 7 - Eaton - Automatic self-cleaning strainers

Pipeline Fabricated Construction Permanent
Automatic Self-Cleaning Strainers Strainer Media

2596 10”-60”

Eaton’s Model 2596 Fabricated Automatic
Self-Cleaning Pipeline Strainers are available in

10”, 12”, 14”, 16”, 18”, 20”, 24”, 30”, 36”, 48”, and 60”
sizes. Continuous flow, simplified maintenance,
and worry-free operation characterize the Model

2596 across numerous industries.

Model 2596 20”

FEaTuRES / bEnEFITS The Eaton Model 2596 The Model 2596 features the
Automatic Self-Cleaning idL™ shaft seal that positively
3
• Flow rates up to 35,000 gpm (7949 m /hr)
Strainer is designed for the prevents leakage from the
• A broad selection of screen options continuous removal of backwash shaft at the top of
• Automatic backwashing for operator-free service and entrained solids from liquids the strainer. This unique quad
minimal backwash effluent in pipeline systems. seal keeps the exterior of the
strainer dry and prevents
• Exclusive idL™ Seal for leak free service, available up With an automated control external leakage or weeping of
to 24” only system monitoring the strainer the process media down the
operation, cleaning is accom-
• Unitized modular assembly for easy maintenance plished by an integral sides of the strainer.
• Fabricated carbon steel construction backwash system. A small To simplify maintenance the
portion of the screen element Model 2596 features a unitized
is isolated and cleaned by modular assembly. The motor,
OpTIOnS reverse flow while the gear reducer, and the internal
• Various grades of stainless steel, copper nickel, monel, remaining screen area operating mechanism are
and other exotic materials of construction continues to strain—providing housed within the strainer
uninterrupted flow. This effi- cover and lift off as a unit. This
• ASME Section VIII, Div. 1. code stamp available.
cient design uses only a small makes all components easily
• Flanged, screwed, or socket weld backwash connections amount of the liquid being accessible and reduces associ-
• Internal and external epoxy paint or other coatings, upon strained to carry debris away ated maintenance costs.
request, on all carbon steel components for fresh water from the strainer element.
service applications
• Custom designs are available upon request
