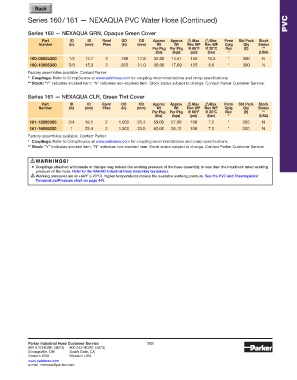

Series 160 / 161 — NEXAQUA PVC Water Hose (Continued) PVC

Series 160 — NEXAQUA GRN, Opaque Green Cover
Part ID ID Reinf OD OD Approx Approx Max Max Perm Std Pack Stock
!
!
Number (in) (mm) Plies (in) (mm) Wt Wt Rec WP Rec WP Cplg Qty Status
Per Pkg Per Pkg @ 68°F @ 20°C Rec (ft) **
(lbs) (kgs) (psi) (bar) * (USA)
160-08005300 1/2 12.7 2 .700 17.8 32.00 14.51 150 10.3 * 300 N
160-10005300 5/8 15.9 2 .825 21.0 39.00 17.69 125 8.6 * 300 N
Factory assemblies available. Contact Parker.
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

Series 161 — NEXAQUA CLR, Green Tint Cover
Part ID ID Reinf OD OD Approx Approx Max Max Perm Std Pack Stock
!
!
Number (in) (mm) Plies (in) (mm) Wt Wt Rec WP Rec WP Cplg Qty Status
Per Pkg Per Pkg @ 68°F @ 20°C Rec (ft) **
(lbs) (kgs) (psi) (bar) * (USA)
161-12005300 3/4 19.1 2 1.000 25.4 59.00 27.00 100 7.0 * 300 N
161-16005200 1 25.4 2 1.300 33.0 62.00 28.12 100 7.0 * 200 N
Factory assemblies available. Contact Parker.
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

! WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See the PVC and Thermoplastic
!
Temperature/Pressure chart on page 445.
