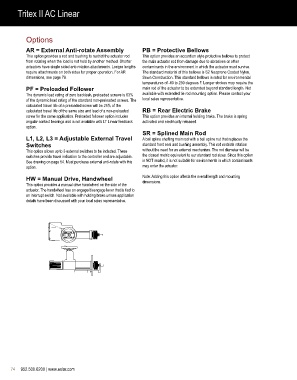

Tritex II AC Linear

Options

AR = External Anti-rotate Assembly PB = Protective Bellows
This option provides a rod and bushing to restrict the actuator rod This option provides an accordion style protective bellows to protect
from rotating when the load is not held by another method. Shorter the main actuator rod from damage due to abrasives or other
actuators have single sided anti-rotation attachments. Longer lengths contaminants in the environment in which the actuator must survive.
require attachments on both sides for proper operation. For AR The standard material of this bellows is S2 Neoprene Coated Nylon,
dimensions, see page 78. Sewn Construction. This standard bellows is rated for environmental
temperatures of -40 to 250 degrees F. Longer strokes may require the
PF = Preloaded Follower main rod of the actuator to be extended beyond standard length. Not
The dynamic load rating of zero backlash, preloaded screws is 63% available with extended tie rod mounting option. Please contact your
of the dynamic load rating of the standard non-preloaded screws. The local sales representative.
calculated travel life of a preloaded screw will be 25% of the
calculated travel life of the same size and lead of a non-preloaded RB = Rear Electric Brake
screw for the same application. Preloaded follower option includes This option provides an internal holding brake. The brake is spring
angular contact bearings and is not available with LT Linear feedback activated and electrically released.
option.
SR = Splined Main Rod
L1, L2, L3 = Adjustable External Travel A ball spline shafting main rod with a ball spline nut that replaces the
Switches standard front seal and bushing assembly. This rod restricts rotation
This option allows up to 3 external switches to be included. These without the need for an external mechanism. The rod diameter will be
switches provide travel indication to the controller and are adjustable. the closest metric equivalent to our standard rod sizes. Since this option
See drawing on page 54. Must purchase external anti-rotate with this is NOT sealed, it is not suitable for environments in which contaminants
option. may enter the actuator.

HW = Manual Drive, Handwheel Note: Adding this option affects the overall length and mounting
This option provides a manual drive handwheel on the side of the dimensions.
actuator. The handwheel has an engage/disengage lever that is tied to
an interrupt switch. Not available with holding brake unless application
details have been discussed with your local sales representative.
