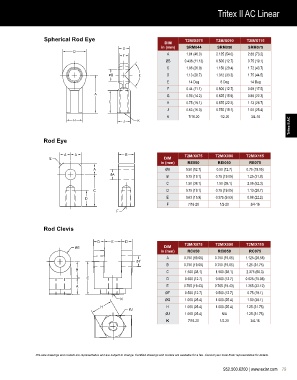

Page 24 - Exlar - TRITEX 2 series fully integrated servo drive/motor/actuator

Tritex II AC Linear

Spherical Rod Eye T2M/X075 T2M/X090 T2M/X115
DIM
in (mm) SRM044 SRM050 SRM075
A 1.81 (46.0) 2.125 (54.0) 2.88 (73.2)
ØB 0.438 (11.13) 0.500 (12.7) 0.75 (19.1)
C 1.06 (26.9) 1.156 (29.4) 1.72 (43.7)
D 1.13 (28.7) 1.312 (33.3) 1.75 (44.5)
E 14 Deg 6 Deg 14 Deg
F 0.44 (11.1) 0.500 (12.7) 0.69 (17.5)
G 0.56 (14.2) 0.625 (15.9) 0.88 (22.3)
H 0.75 (19.1) 0.875 (22.2) 1.13 (28.7)
J 0.63 (16.0) 0.750 (19.1) 1.00 (25.4)
K 7/16-20 1/2-20 3/4-16
Tritex II AC

Rod Eye

T2M/X075 T2M/X090 T2M/X115
DIM
in (mm) RE050 REI050 RE075
ØA 0.50 (12.7) 0.50 (12.7) 0.75 (19.05)
B 0.75 (19.1) 0.75 (19.05) 1.25 (31.8)
C 1.50 (38.1) 1.50 (38.1) 2.06 (52.3)
D 0.75 (19.1) 0.75 (19.05) 1.13 (28.7)
E 0.63 (15.9) 0.375 (9.53) 0.88 (22.2)
F 7/16-20 1/2-20 3/4-16

Rod Clevis

T2M/X075 T2M/X090 T2M/X115
DIM
in (mm) RC050 RCI050 RC075
A 0.750 (19.05) 0.750 (19.05) 1.125 (28.58)
B 0.750 (19.05) 0.750 (19.05) 1.25 (31.75)
C 1.500 (38.1) 1.500 (38.1) 2.375 (60.3)
D 0.500 (12.7) 0.500 (12.7) 0.625 (15.88)
E 0.765 (19.43) 0.765 (19.43) 1.265 (32.12)
ØF 0.500 (12.7) 0.500 (12.7) 0.75 (19.1)
ØG 1.000 (25.4) 1.000 (25.4) 1.50 (38.1)
H 1.000 (25.4) 1.000 (25.4) 1.25 (31.75)
ØJ 1.000 (25.4) N/A 1.25 (31.75)
K 7/16-20 1/2-20 3/4-16

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
