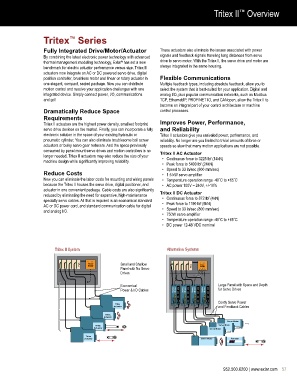

Tritex II  Overview
                                                                                                    ™




                   Tritex  Series
                              ™
                   Fully Integrated Drive/Motor/Actuator           These actuators also eliminate the issues associated with power
                   By combining the latest electronic power technology with advanced   signals and feedback signals traveling long distances from servo
                   thermal management modeling technology, Exlar  has set a new   drive to servo motor. With the Tritex II, the servo drive and motor are
                                                   ®
                   benchmark for electric actuator performance versus size. Tritex II   always integrated in the same housing.
                   actuators now integrate an AC or DC powered servo drive, digital
                   position controller, brushless motor and linear or rotary actuator in   Flexible Communications
                   one elegant, compact, sealed package. Now you can distribute   Multiple feedback types, including absolute feedback, allow you to
                   motion control and resolve your application challenges with one   select the system that is best-suited for your application. Digital and
                   integrated device. Simply connect power, I/O, communications    analog I/O, plus popular communication networks, such as Modbus
                   and go!                                         TCP, Ethernet/IP, PROFINET IO, and CANopen, allow the Tritex II to
                                                                   become an integral part of your control architecture or machine
                   Dramatically Reduce Space                       control processes.
                   Requirements
                   Tritex II actuators are the highest power density, smallest footprint   Improves Power, Performance,
                   servo drive devices on the market. Finally, you can incorporate a fully   and Reliability
                   electronic solution in the space of your existing hydraulic or   Tritex II actuators give you unrivaled power, performance, and
                   pneumatic cylinder. You can also eliminate troublesome ball screw   reliability. No longer are you limited to trivial amounts of force or
                   actuators or bulky servo gear reducers. And the space previously   speeds so slow that many motion applications are not possible.
                   consumed by panel mount servo drives and motion controllers is no
                   longer needed. Tritex II actuators may also reduce the size of your   Tritex II AC Actuator
                   machine design while significantly improving reliability.  •    Continuous force to 3225 lbf (14kN)
                                                                    •    Peak force to 5400 lbf (24kN)
                                                                    •    Speed to 33 in/sec (800 mm/sec)
                   Reduce Costs                                     •    1.5 kW servo amplifier
                   Now you can eliminate the labor costs for mounting and wiring panels   •    Temperature operation range -40˚C to +65˚C
                   because the Tritex II houses the servo drive, digital positioner, and   •    AC power 100V – 240V, +/-10%
                   actuator in one convenient package. Cable costs are also significantly
                   reduced by eliminating the need for expensive, high-maintenance   Tritex II DC Actuator
                   specialty servo cables. All that is required is an economical standard   •    Continuous force to 872 lbf (4kN)
                   AC or DC power cord, and standard communication cable for digital   •   Peak force to 1190 lbf (5kN)
                   and analog I/O.                                  •   Speed to 33 in/sec (800 mm/sec)
                                                                    •    750W servo amplifier
                                                                    •    Temperature operation range -40˚C to +65˚C
                                                                    •    DC power 12-48 VDC nominal




                        Tritex II System                              Alternative Systems



                                  PLC  Power       Small and Shallow            PLC  Power
                                     Supply
                                                   Panel with No Servo              Supply
                                                   Drives
                                                   Economical                              Large Panel with Space and Depth
                                                   Power & I/O Cables    Servo  Drive  Servo  Drive  Servo  Drive  Servo  Drive  for Servo Drives

                                                                                           Costly Servo Power
                                                Tritex
                                                Actuator                                   and Feedback Cables
                                            Tritex
                                            Actuator
                                                                                               Servo Motor
                                        Tritex                                             Servo Motor
                                        Actuator
                                                                                       Servo Motor
                                    Tritex
                                    Actuator                                        Servo Motor  Actuator
