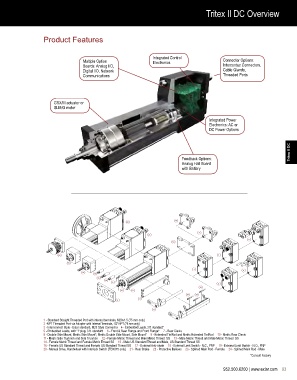

Tritex II DC Overview
Product Features
Integrated Control
Multiple Option Electronics Connector Options:
Boards: Analog I/O, Intercontec Connectors,
Digital I/O, Network Cable Glands,
Communications Threaded Ports
GSX/M actuator or
SLM/G motor
Integrated Power
Electronics: AC or
DC Power Options
Tritex II DC
Feedback Options:
Analog Hall Board
with Battery
10
20
7
21
5
12
22 3
23
1
4
24
16
15
14
9
2
18
13 8
18 19
11
6
17
1 - Standard Straight Threaded Port with internal terminals, M20x1.5 (75 mm only)
2 -NPT Threaded Port via Adapter with Internal Terminals, 1/2” NPT (75 mm only)
3 - Interconnect Style - Exlar standard, M23 Style Connector 4 - Embedded Leads, 3 ft. standard*
5 - Embedded Leads, with “I” plug, 3 ft. standard 6 - Front & Rear Flange and Front Flange* 7 - Rear Clevis
8 - Double Side Mount, Metric Side Mount*, Metric Double Side Mount, Side Mount* 9 - Extended Tie Rod and Metric Extended Tie Rod 10 - Metric Rear Clevis
11 - Metric Side Trunnion and Side Trunnion 12 - Female Metric Thread and Male Metric Thread SS 13 - Male Metric Thread and Male Metric Thread SS
14 - Female Metric Thread and Female Metric Thread SS 15 - Male US Standard Thread and Male, US Standard Thread SS
16 - Female US Standard Thread and Female US Standard Thread SS 17 - External Anti-rotate 18 - External Limit Switch - N.C., PNP 19 - External Limit Switch - N.O., PNP
20 - Manual Drive, Handwheel with Interlock Switch (TDX075 only) 21 - Rear Brake 22 - Protective Bellows 23 - Splined Main Rod - Female 24 - Splined Main Rod - Male
*Consult Factory
