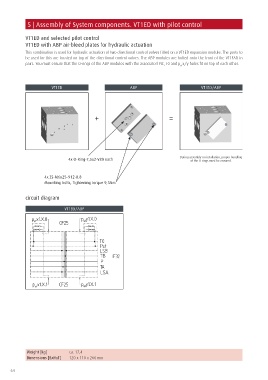

Page 64 - Linde - VT1 Modular, modular system for LSC manifold valve plates

5 | Assembly of System components. VT1ED with pilot control

VT1ED and selected pilot control
VT1ED with ABP air-bleed plates for hydraulic actuation

This combination is used for hydraulic actuation of two directional control valves fitted on a VT1ED expansion module. The ports to
be used for this are located on top of the directional control valves. The ABP modules are bolted onto the front of the VT1EAD in
pairs. You must ensure that the O-rings of the ABP modules with the associated Pst, T0 and p x/y holes fit on top of each other.
st

VT1ED ABP VT1ED/ABP

+ =

During assembly or installation, proper handling
4x O-Ring-7,5x2-V80 each of the O-rings must be ensured.

4x ZS-M6x25-912-8.8
Mounting bolts, Tightening torque 9,5Nm

circuit diagram

VT1ED/ABP

Weight [kg] ca. 17,4
Dimensions [BxHxT] 120 x 110 x 266 mm
