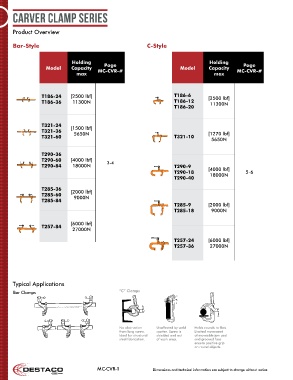

P. 168
carver clamp Series
Product Overview
Bar-Style C-Style
Holding Holding
Page
Page
Model Capacity MC-CVR-# Model Capacity MC-CVR-#
max max
T186-24 [2500 lbf] T186-6 [2500 lbf]
T186-36 11300N T186-12 11300N
T186-20
T321-24 [1500 lbf]
T321-36 5650N [1270 lbf]
T321-60 T321-10 5650N
T290-36
T290-60 [4000 lbf] 3-4
T290-84 18000N T290-9
T290-18 [4000 lbf] 5-6
18000N
T290-40
T285-36 [2000 lbf]
T285-60 9000N
T285-84
T285-9 [2000 lbf]
T285-18 9000N
[6000 lbf]
T257-84
27000N
T257-24 [6000 lbf]
T257-36 27000N
Typical Applications
Bar Clamps “C” Clamps
No obstruction Unaffected by weld Holds rounds to flats.
from long screw. spatter. Screw is Limited movement
Ideal for structural shielded and out of moveable jaw pad
steel fabrication. of work area. and grooved face
ensure positive grip
on round objects.
MC-CVR-1 Dimensions and technical information are subject to change without notice
