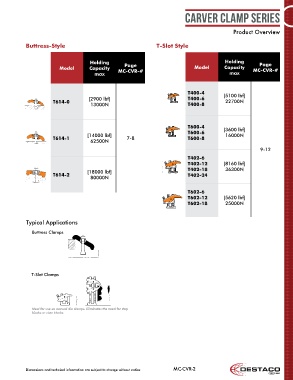

P. 169
carver clamp Series
Product Overview
Buttress-Style T-Slot Style
Holding Holding Page
Page
Model Capacity MC-CVR-# Model Capacity MC-CVR-#
max max
T400-4
[2900 lbf] T400-6 [5100 lbf]
T614-0 22700N
13000N T400-8
T600-4 [3600 lbf]
T600-6
[14000 lbf] 16000N
T614-1 7-8 T600-8
62500N
9-12
T402-6
T402-12 [8160 lbf]
[18000 lbf] T402-18 36300N
T614-2 T402-24
80000N
T602-6
T602-12 [5620 lbf]
T602-18 25000N
Typical Applications
Buttress Clamps
T-Slot Clamps
Ideal for use as manual die clamps. Eliminates the need for step
blocks or riser blocks.
Dimensions and technical information are subject to change without notice MC-CVR-2
