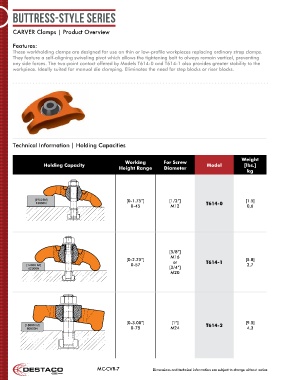

Page 174 - Destaco - Clamping Technology

buttress-STYLE Series

CARVER Clamps | Product Overview

Features:
These workholding clamps are designed for use on thin or low-profile workpieces replacing ordinary strap clamps.
They feature a self-aligning swiveling pivot which allows the tightening bolt to always remain vertical, preventing
any side forces. The two-point contact offered by Models T614-0 and T614-1 also provides greater stability to the
workpiece. Ideally suited for manual die clamping. Eliminates the need for step blocks or riser blocks.

Technical Information | Holding Capacities

Weight
Working For Screw
Holding Capacity Model [lbs.]
Height Range Diameter
kg

[2900 lbf] [0-1.75”] [1/2”] [1.5]
13000N T614-0
0-45 M12 0,6

[5/8”]
M16
[0-2.25”] or T614-1 [5.8]
[14000 lbf] 0-57 2,7
62500N [3/4”]
M20

[0-3.00”] [1”] [9.5]
[18000 lbf] T614-2
80000N 0-75 M24 4,3

MC-CVR-7 Dimensions and technical information are subject to change without notice
