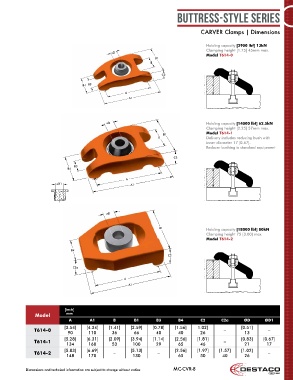

Page 175 - Destaco - Clamping Technology

buttress-STYLE Series

CARVER Clamps | Dimensions

Holding capacity [2900 lbf] 13kN
Clamping height [1.75] 45mm max.
ØD
Model T614-0
B1
B

C2

B4 B3
A
A1

ØD Holding capacity [14000 lbf] 62.5kN
Clamping height [2.25] 57mm max.
B1 Model T614-1
B Delivery includes reducing bush with
inner diameter 17 [0.67].
Reducer bushing is standard equipment

C2
B3
B4
A
ØD1 A1

ØD

B1 Holding capacity [18000 lbf] 80kN
Clamping height 75 [3.00] max.
Model T614-2

B4
C2

C2a

A
A1

[inch]
Model mm
A A1 B B1 B3 B4 C2 C2a ØD ØD1
[3.54] [4.34] [1.41] [2.59] [0.78] [1.56] 1.02] [0.51]
T614-0 90 110 36 66 40 40 26 – 13 –
[5.28] [6.31] [2.09] [3.94] [1.14] [2.56] [1.81] [0.83] [0.67]
T614-1 –
134 160 53 100 29 65 46 21 17
[5.83] [6.69] [5.13] [2.56] [1.97] [1.57] [1.02]
T614-2 – – –
148 170 130 65 50 40 26

Dimensions and technical information are subject to change without notice MC-CVR-8
