P. 203
868 Series

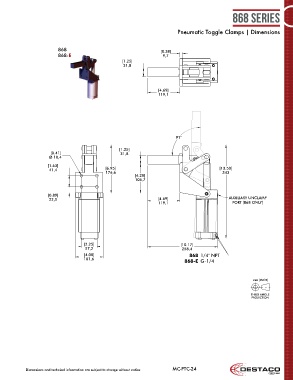

868 Pneumatic Toggle Clamps | Dimensions
868 [0.38]
868-E 9,7
[1.25]
31,8
[4.69]
119,1
91°
[1.25]
[0.41] 31,8
Ø 10,4
[1.63]
41,4 [6.95] [13.50]
176,6 343
[4.20]
106,7
[0.89]
22,5 [4.69] AUXILIARY UNCLAMP
119,1 PORT (868 ONLY)
[2.25] [10.17]
57,2 258,4
[4.00] 868 1/4" NPT
101,6
868-E G-1/4
mm [INCH] mm [INCH]
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
Dimensions and technical information are subject to change without notice MC-PTC-24
