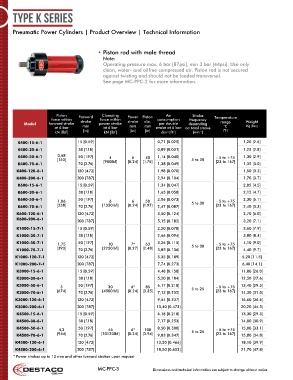

Page 254 - Destaco - Clamping Technology

type K Series

Pneumatic Power Cylinders | Product Overview | Technical Information

• Piston rod with male thread
Note:
Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only
clean, water- and oilfree compressed air. Piston rod is not secured
against twisting and should not be loaded transversal.
See page MC-PPC-2 for more information.

Piston Forward Clamping Power Piston Air Stroke
force within stroke force within stroke dia. consumption frequency Temperature
Model forward stroke power stroke per double depending range Weight
at 6 bar mm at 6 bar mm mm stroke at 6 bar on total stroke °C Kg [lbs]
kN [lbf] [in] kN [lbf] [in] [in] dm [ft ] [min -1 ] [°F]
3
3
K400-15-6-1 15 [0.59] 0,71 [0.025] 1,20 [2.6]
K400-30-6-1 30 [1.18] 0,89 [0.031] 1,25 [2.8]
K400-50-6-1 0,68 50 [1.97] 4 6 40 1,14 [0.040] - 5 to +75 1,30 [2.9]
[153] 5 to 30
K400-70-6-1 70 [2.76] [900lbf] [0.24] [1.75] 1,38 [0.049] [23 to 167] 1,35 [3.0]
K400-120-6-1 120 [4.72] 1,98 [0.070] 1,50 [3.3]
K400-200-6-1 200 [7.87] 2,94 [0.104] 1,70 [3.7]
K600-15-6-1 15 [0.59] 1,34 [0.047] 2,05 [4.5]
K600-30-6-1 30 [1.18] 1,65 [0.058] 2,15 [4.7]
K600-50-6-1 1,06 50 [1.97] 6 6 50 2,06 [0.073] - 5 to +75 2,30 [5.1]
K600-70-6-1 [238] 70 [2.76] [1350lbf] [0.24] [1.97] 2,47 [0.087] 5 to 30 [23 to 167] 2,40 [5.3]
K600-120-6-1 120 [4.72] 3,50 [0.124] 2,70 [6.0]
K600-200-6-1
200 [7.87] 5,15 [0.182] 3,20 [7.1]
K1000-15-7-1 15 [0.59] 2,20 [0.078] 3,60 [7.9]
K1000-30-7-1 30 [1.18] 2,66 [0.094] 3,80 [8.4]
K1000-50-7-1 1,75 50 [1.97] 10 7* 63 3,26 [0.115] 5 to 30 - 5 to +75 4,10 [9.0]
K1000-70-7-1 [393] 70 [2.76] [2250lbf] [0.27] [2.48] 3,85 [0.136] [23 to 167] 4,40 [9.7]
K1000-120-7-1 120 [4.72] 5,35 [0.189] 5,20 [11.5]
K1000-200-7-1 200 [7.87] 7,74 [0.273] 6,40 [14.1]
K3000-15-6-1 15 [0.59] 4,48 [0.158] 11,80 [26.0 ]
K3000-30-6-1 30 [1.18] 5,20 [0.184] 12,50 [27.6]
K3000-50-6-1 3 50 [1.97] 30 6* 85 6,17 [0.218] 5 to 25 - 5 to +75 13,40 [29.5]
K3000-70-6-1 [674] 70 [2.76] [4500lbf] [0.24] [3.35] 7,13 [0.252] [23 to 167] 14,30 [31.5]
K3000-120-6-1 120 [4.72] 9,54 [0.337] 16,60 [36.6]
K3000-200-6-1 200 [7.87] 13,40 [0.473] 20,20 [44.5]
K4500-15-6-1 15 [0.59] 6,18 [0.218] 13,30 [29.3]
K4500-30-6-1 30 [1.18] 7,17 [0.253] 14,00 [30.9]
K4500-50-6-1 4,2 50 [1.97] 45 6* 100 8,50 [0.300] 5 to 25 - 5 to +75 15,00 [33.1]
K4500-70-6-1 [944] 70 [2.76] [10120lbf] [0.24] [3.94] 9,83 [0.347] [23 to 167] 15,80 [34.8]
K4500-120-6-1 120 [4.72] 13,20 [0.466] 18,10 [39.9]
K4500-200-6-1 200 [7.87] 18,50 [0.653] 21,70 [47.8]
* Power strokes up to 12 mm and other forward strokes upon request

MC-PPC-3 Dimensions and technical information are subject to change without notice
