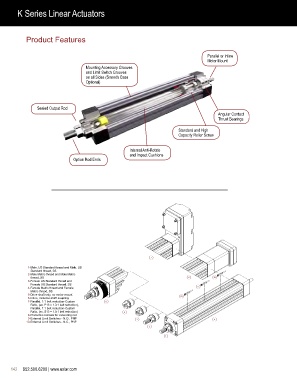

K Series Linear Actuators

Product Features

Parallel or Inline
Motor Mount
Mounting Accessory Grooves
and Limit Switch Grooves
on all Sides (Smooth Case
Optional)

Sealed Output Rod
Angular Contact
Thrust Bearings

Standard and High
Capacity Roller Screw

Internal Anti-Rotate
and Impact Cushions
Option Rod Ends

7
1- Male, US Standard thread and Male, US
Standard thread, SS
2- Male Metric thread and Male Metric
thread, SS 6 10
3- Female US Standard thread and
Female US Standard thread, SS
4- Female Metric thread and Female 9
Metric thread, SS
5- Drive shaft only, no motor mount
6- Inline, includes shaft coupling 10
7- Parallel, 1:1 belt reduction-Custom 8
Ratio, (ex. P13 = 1.3:1 belt reduction),
Parallel, 1:1 belt reduction-Custom
Ratio, (ex. S13 = 1.3:1 belt reduction) 4
8- Protective bellows for extending rod
9- External Limit Switches - N.O., PNP 3 5
10- External Limit Switches - N.C., PNP
2
1
