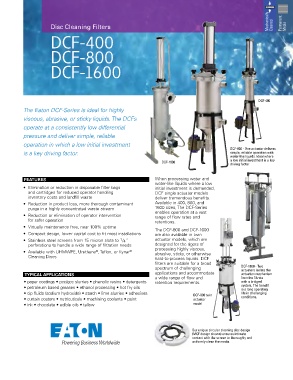

Page 35 - Eaton - Automatic self-cleaning family

Mechanically Permanent

Disc Cleaning Filters Cleaned Media
DCF-400

DCF-800

DCF-1600

DCF-400
The Eaton DCF-Series is ideal for highly
viscous, abrasive, or sticky liquids. The DCFs
operate at a consistently low differential
pressure and deliver simple, reliable

operation in which a low initial investment
DCF-800 - One actuator delivers
is a key driving factor. simple, reliable operation with
water-like liquids. Ideal where
a low initial investment is a key
DCF-1600
driving factor

Features When processing water and
water-like liquids where a low
• Elimination or reduction in disposable filter bags initial investment is demanded,
and cartridges for reduced operator handling DCF single actuator models
inventory costs and landfill waste deliver tremendous benefits.
• Reduction in product loss, more thorough contaminant Available in 400, 800, and
purge in a highly concentrated waste stream 1600 sizes, The DCF-Series
• Reduction or elimination of operator intervention enables operation at a vast
range of flow rates and
for safer operation retentions.
• Virtually maintenance free, near 100% uptime The DCF-800 and DCF-1600
• Compact design, lower capital cost to fit most installations are also available in twin
• Stainless steel screens from 15 micron slots to 1 / 4 ” actuator models, which are
perforations to handle a wide range of filtration needs designed for the rigors of
• Available with UhMWpE, Urethane , Teflon, or Kynar processing highly viscous,
®
®
abrasive, sticky, or otherwise
Cleaning Discs hard-to-process liquids. DCF
filters are suitable for a broad
spectrum of challenging DCF-1600 - Two
actuators isolate the
tyPiCal aPPliCations applications and accommodate actuation mechanism
a wide range of flow and from the filtrate
• paper coatings • pcc/gcc slurries • phenolic resins • detergents retention requirements. with a bridged
• petroleum based greases • ethanol processing • hot fry oils system. The benefit
is a long operating
• cip fluids (sodium hydroxide) • starch • lime slurries • adhesives DCF-800 twin life in challenging
• curtain coaters • nutricuticals • machining coolants • paint actuator conditions.
• ink • chocolate • edible oils • tallow model

Our unique circular cleaning disc design
(MCF design shown) ensures intimate
contact with the screen to thoroughly and
uniformly clean the media.
