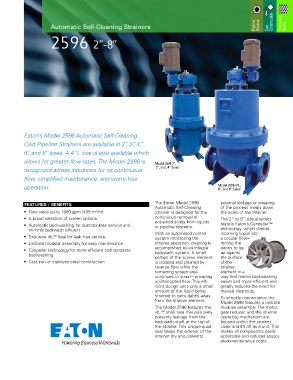

Page 7 - Eaton - Automatic self-cleaning family

Pipeline Construction Permanent
Automatic Self-Cleaning Strainers Strainer Cast Media

2596 2”-8”

Eaton’s Model 2596 Automatic Self-Cleaning

Cast Pipeline Strainers are available in 2”, 3”, 4”,
6”, and 8” sizes. A 4”L size is also available which
allows for greater flow rates. The Model 2596 is Model 2596 2”,
recognized across industries for its continuous 3”, and, 4” Sizes

flow, simplified maintenance, and worry-free
operation. Model 2596 4”L,
6”, and 8” Sizes

FeaTures / BeneFiTs The Eaton Model 2596 external leakage or weeping
Automatic Self-Cleaning of the process media down
3
• Flow rates up to 1800 gpm (409 m /hr) Strainer is designed for the the sides of the strainer.
• A broad selection of screen options continuous removal of The 2” to 8” size strainers
entrained solids from liquids
• Automatic backwashing for operator-free service and in pipeline systems. feature Eaton’s Cenpeller™
minimal backwash effluent technology, which directs
• Exclusive idL™ Seal for leak free service With an automated control incoming liquid into
system monitoring the
a circular flow–
• Unitized modular assembly for easy maintenance strainer operation, cleaning is forcing the
• Cenpeller technology for more efficient and complete accomplished by an integral debris to lay
up against
backwash system. A small
backwashing portion of the screen element the surface
• Cast iron or stainless steel construction is isolated and cleaned by of the
reverse flow while the strainer
remaining screen area element in a
continues to strain—providing way that makes backwashing
uninterrupted flow. This effi- easier and more efficient and
cient design uses only a small greatly reduces the need for
amount of the liquid being manual cleanouts.
strained to carry debris away To simplify maintenance the
from the strainer element. Model 2596 features a unitized
The Model 2596 features the modular assembly. The motor,
idL™ shaft seal that positively gear reducer, and the internal
prevents leakage from the operating mechanism are
backwash shaft at the top of housed within the strainer
the strainer. This unique quad cover and lift off as a unit. This
seal keeps the exterior of the makes all components easily
strainer dry and prevents accessible and reduces associ-
ated maintenance costs.
