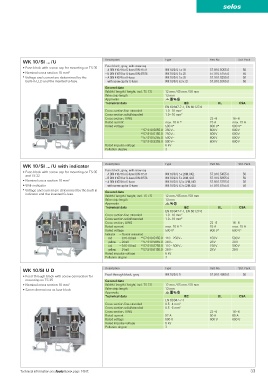

Page 33 - Wieland - Selos/Fasis

selos

WK 10 / SI ... / U Description Type Part No. Std. Pack
Fuse block, gray, with screw cap
• Fuse block with screw cap for mounting on TS 35
– A DIN 41674 for G-fuses DIN 41571 WK 10/Si U 5 x 20 57.910.5055.0 50
• Nominal cross section 10 mm 2 – B DIN 41674 for G-fuses DIN 41576 WK 10/Si U 5 x 25 57.910.5155.0 50
* Voltage and current are determined by the – A DIN 41674 for G-fuses WK 10/Si U 5 x 30 57.910.5255.0 50
built-in LED and the inserted G-fuse. – with screw cap for G-fuses WK 10/Si U 6,3 x 32 57.910.5355.0 50
General data
Width / length / height, incl. TS 7.5 12 mm / 65 mm / 58 mm
Wire strip length 13 mm
Approvals ETMD
Technical data IEC UL CSA
EN 60 947-7-1, EN 60 127-6
Cross section fine-stranded 1.0 – 10 mm 2
Cross section solid/stranded 1.0 – 16 mm 2
Cross section, AWG 22 – 6 16 – 6
Rated current max. 10 A 1) 15 A max. 15 A
Rated voltage 500 V* 600 V* 600 V*
* 57.910.5055.0 250 V~ 600 V 600 V
* 57.910.5155.0 250 V~ 600 V 600 V
* 57.910.5255.0 500 V~ 600 V 600 V
* 57.910.5355.0 500 V~ 600 V 600 V
Rated impulse voltage 6 kV
Pollution degree 3

WK 10 / SI ... / U with indicator Description Type Part No. Std. Pack
Fuse block, gray, with screw cap
• Fuse block with screw cap for mounting on TS 35
and TS 32 – A DIN 41674 for G-fuses DIN 41571 WK 10/Si U 5 x 20M, NGL 57.910.5455.0 50
– B DIN 41674 for G-fuses DIN 41576 WK 10/Si U 5 x 20M, GLB 57.910.5855.0 50
• Nominal cross section 10 mm 2 – A DIN 41674 for G-fuses WK 10/Si U 6,3 x 32M, NGL 57.910.5755.0 50
• With indicator – with screw cap for G-fuses WK 10/Si U 6,3 x 32M, GLB 57.910.6155.0 50
* Voltage and current are determined by the built-in General data
indicator and the inserted G-fuse.
Width / length / height, incl. TS 7.5 12 mm / 65 mm / 58 mm
Wire strip length 13 mm
Approvals EMD
Technical data IEC UL CSA
EN 60 947-7-1, EN 60 127-6
Cross section fine-stranded 1.0 – 10 mm 2
Cross section solid/stranded 1.0 – 16 mm 2
Cross section, AWG 22 – 6 16 – 6
Rated current max. 10 A 1) 15 A max. 15 A
Rated voltage 500 V* 600 V* 600 V*
Indicator – Current consumed
red – 0.16 - 0.8 mA * 57.910.5455.0 110 - 250 V~ 150 V 500 V
yellow – 24 mA * 57.910.5855.0 28 V~ 28 V 28 V
red – 0.16 - 0.8 mA * 57.910.5755.0 110 - 500 V~ 150 V 500 V
yellow – 24 mA * 57.910.6155.0 28 V~ 28 V 28 V
Rated impulse voltage 6 kV
Pollution degree 3

WK 10 /SI U D Description Type Part No. Std. Pack
Feed-through block, gray WK 10/Si U D 57.910.4955.0 50
• Feed-through block with screw connection for
mounting on TS 35 General data
• Nominal cross section 10 mm 2 Width / length / height, incl. TS 7.5 12 mm / 65 mm / 58 mm
• Same dimensions as fuse block Wire strip length 13 mm
Approvals ETMD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 0.5 – 4 mm 2
Cross section solid/stranded 0.5 – 6 mm 2
Cross section, AWG 22 – 6 16 – 6
Rated current 57 A 50 A 65 A
Rated voltage 500 V 600 V 600 V
Rated impulse voltage 6 kV
Pollution degree 3

Technical information see facts & data page 146 ff. 33
