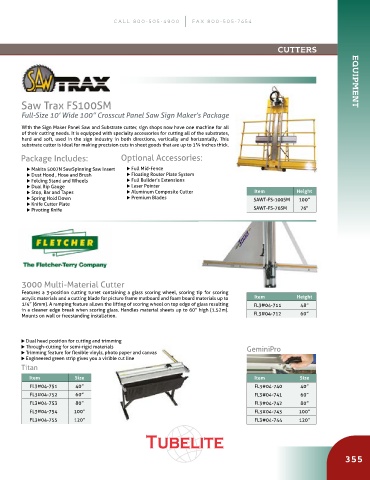

Page 357 - Tubelite Electrical Catalog

CALL 800 -505 - 4900 F AX 800 -505 - 7 454

CUTTERS

EQUIPMENT

Saw Trax FS100SM

Full-Size 10’ Wide 100” Crosscut Panel Saw Sign Maker’s Package

With the Sign Maker Panel Saw and Substrate cutter, sign shops now have one machine for all
of their cutting needs. It is equipped with specialty accessories for cutting all of the substrates,
hard and soft, used in the sign industry in both directions, vertically and horizontally. This
substrate cutter is ideal for making precision cuts in sheet goods that are up to 1¾ inches thick.

Package Includes: Optional Accessories:
X Makita 5007N SawSpinning Saw Insert X Full Mid-Fence
X Dust Hood , Hose and Brush X Floating Router Plate System
X Folding Stand and Wheels X Full Builder’s Extensions
X Dual Rip Gauge X Laser Pointer
X Stop, Bar and Tapes X Aluminum Composite Cutter Item Height
X Spring Hold Down X Premium Blades SAWT-FS-100SM 100”
X Knife Cutter Plate
X Pivoting Knife SAWT-FS-76SM 76”

3000 Multi-Material Cutter
Features a 3-position cutting turret containing a glass scoring wheel, scoring tip for scoring
acrylic materials and a cutting blade for picture frame matboard and foam board materials up to Item Height
1/4” (6mm). A ramping feature allows the lifting of scoring wheel on top edge of glass resulting FL3#04-711 48”
in a cleaner edge break when scoring glass. Handles material sheets up to 60” high (1.52m).
Mounts on wall or freestanding installation. FL3#04-712 60”

X Dual head position for cutting and trimming
X Through-cutting for semi-rigid materials GeminiPro
X Trimming feature for flexible vinyls, photo paper and canvas
X Engineered green strip gives you a visible cut line
Titan
Item Size Item Size
FL3#04-751 40” FL3#04-740 40”
FL3#04-752 60” FL3#04-741 60”
FL3#04-753 80” FL3#04-742 80”
FL3#04-754 100” FL3#04-743 100”
FL3#04-755 120” FL3#04-744 120”

355
