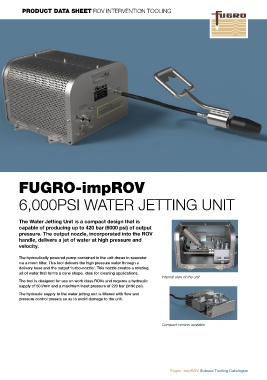

PRODUCT DATA SHEET ROV INTERVENTION TOOLING
FUGRO-impROV
6,000PSI WATER JETTING UNIT
The Water Jetting Unit is a compact design that is
capable of producing up to 420 bar (6000 psi) of output
pressure. The output nozzle, incorporated into the ROV
handle, delivers a jet of water at high pressure and
velocity.
The hydraulically powered pump contained in the unit draws in seawater
via a mesh filter. This tool delivers the high pressure water through a
delivery hose and the output ‘turbo-nozzle’. This nozzle creates a rotating
jet of water that forms a cone shape, ideal for cleaning applications.
Internal view of the unit
The tool is designed for use on work class ROVs and requires a hydraulic
supply of 50 l/min and a maximum input pressure of 220 bar (3190 psi).
The hydraulic supply to the water jetting unit is filtered with flow and
pressure control presets so as to avoid damage to the unit.
Compact version available
