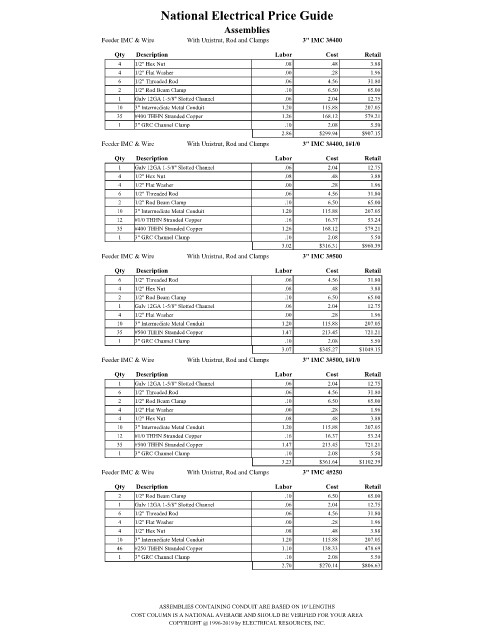

Page 2175 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 3#400
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
35 #400 THHN Stranded Copper 1.26 168.12 579.21
1 3" GRC Channel Clamp .10 2.08 5.50
2.86 $299.94 $907.15
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 3#400, 1#1/0
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
12 #1/0 THHN Stranded Copper .16 16.37 53.24
35 #400 THHN Stranded Copper 1.26 168.12 579.21
1 3" GRC Channel Clamp .10 2.08 5.50
3.02 $316.31 $960.39
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 3#500
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
35 #500 THHN Stranded Copper 1.47 213.45 721.21
1 3" GRC Channel Clamp .10 2.08 5.50
3.07 $345.27 $1049.15
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 3#500, 1#1/0
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
12 #1/0 THHN Stranded Copper .16 16.37 53.24
35 #500 THHN Stranded Copper 1.47 213.45 721.21
1 3" GRC Channel Clamp .10 2.08 5.50
3.23 $361.64 $1102.39
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 4#250

Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
46 #250 THHN Stranded Copper 1.10 138.33 478.69
1 3" GRC Channel Clamp .10 2.08 5.50
2.70 $270.14 $806.63

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
