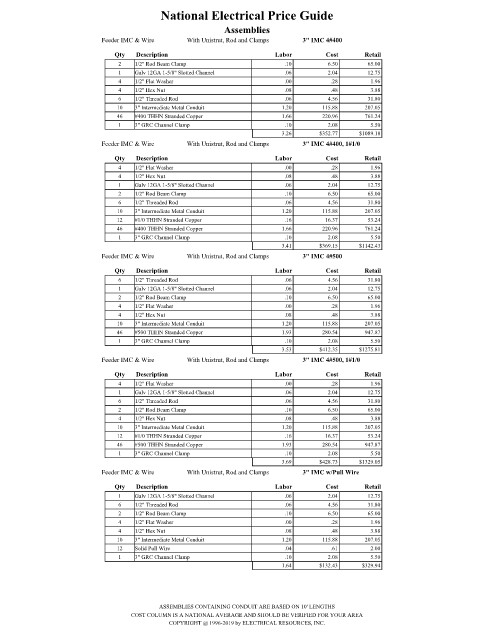

Page 2177 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 4#400
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
46 #400 THHN Stranded Copper 1.66 220.96 761.24
1 3" GRC Channel Clamp .10 2.08 5.50
3.26 $352.77 $1089.18
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 4#400, 1#1/0
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
12 #1/0 THHN Stranded Copper .16 16.37 53.24
46 #400 THHN Stranded Copper 1.66 220.96 761.24
1 3" GRC Channel Clamp .10 2.08 5.50
3.41 $369.15 $1142.43
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 4#500
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
46 #500 THHN Stranded Copper 1.93 280.54 947.87
1 3" GRC Channel Clamp .10 2.08 5.50
3.53 $412.35 $1275.81
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC 4#500, 1#1/0
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
12 #1/0 THHN Stranded Copper .16 16.37 53.24
46 #500 THHN Stranded Copper 1.93 280.54 947.87
1 3" GRC Channel Clamp .10 2.08 5.50
3.69 $428.73 $1329.05
Feeder IMC & Wire With Unistrut, Rod and Clamps 3" IMC w/Pull Wire

Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 3" Intermediate Metal Conduit 1.20 115.88 207.05
12 Solid Pull Wire .04 .61 2.00
1 3" GRC Channel Clamp .10 2.08 5.50
1.64 $132.43 $329.94

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
