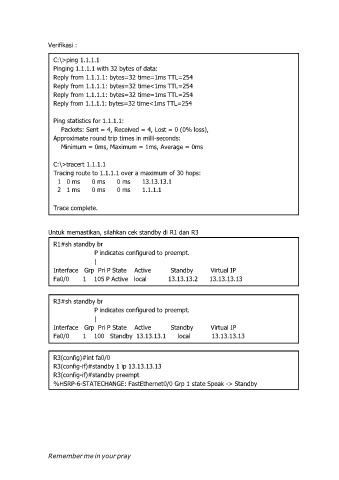

Verifikasi :

C:\>ping 1.1.1.1
Pinging 1.1.1.1 with 32 bytes of data:
Reply from 1.1.1.1: bytes=32 time=1ms TTL=254
Reply from 1.1.1.1: bytes=32 time<1ms TTL=254
Reply from 1.1.1.1: bytes=32 time=1ms TTL=254
Reply from 1.1.1.1: bytes=32 time<1ms TTL=254

Ping statistics for 1.1.1.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 1ms, Average = 0ms

C:\>tracert 1.1.1.1
Tracing route to 1.1.1.1 over a maximum of 30 hops:
1 0 ms 0 ms 0 ms 13.13.13.1
2 1 ms 0 ms 0 ms 1.1.1.1

Trace complete.

Untuk memastikan, silahkan cek standby di R1 dan R3

R1#sh standby br
P indicates configured to preempt.
|
Interface Grp Pri P State Active Standby Virtual IP
Fa0/0 1 105 P Active local 13.13.13.2 13.13.13.13

R3#sh standby br
P indicates configured to preempt.
|
Interface Grp Pri P State Active Standby Virtual IP
Fa0/0 1 100 Standby 13.13.13.1 local 13.13.13.13

R3(config)#int fa0/0
R3(config-if)#standby 1 ip 13.13.13.13
R3(config-if)#standby preempt
%HSRP-6-STATECHANGE: FastEthernet0/0 Grp 1 state Speak -> Standby
