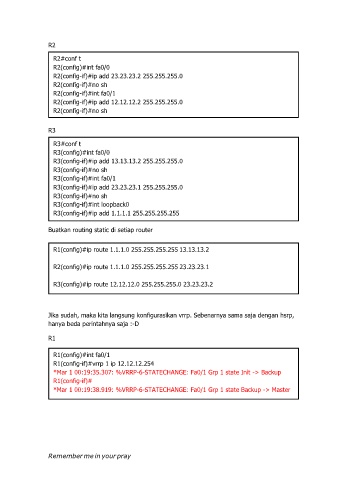

R2

R2#conf t
R2(config)#int fa0/0
R2(config-if)#ip add 23.23.23.2 255.255.255.0
R2(config-if)#no sh
R2(config-if)#int fa0/1
R2(config-if)#ip add 12.12.12.2 255.255.255.0
R2(config-if)#no sh

R3

R3#conf t
R3(config)#int fa0/0
R3(config-if)#ip add 13.13.13.2 255.255.255.0
R3(config-if)#no sh
R3(config-if)#int fa0/1
R3(config-if)#ip add 23.23.23.1 255.255.255.0
R3(config-if)#no sh
R3(config-if)#int loopback0
R3(config-if)#ip add 1.1.1.1 255.255.255.255

Buatkan routing static di setiap router

R1(config)#ip route 1.1.1.0 255.255.255.255 13.13.13.2

R2(config)#ip route 1.1.1.0 255.255.255.255 23.23.23.1

R3(config)#ip route 12.12.12.0 255.255.255.0 23.23.23.2

Jika sudah, maka kita langsung konfigurasikan vrrp. Sebenarnya sama saja dengan hsrp,
hanya beda perintahnya saja :-D

R1

R1(config)#int fa0/1
R1(config-if)#vrrp 1 ip 12.12.12.254
*Mar 1 00:19:35.307: %VRRP-6-STATECHANGE: Fa0/1 Grp 1 state Init -> Backup
R1(config-if)#
*Mar 1 00:19:38.919: %VRRP-6-STATECHANGE: Fa0/1 Grp 1 state Backup -> Master
