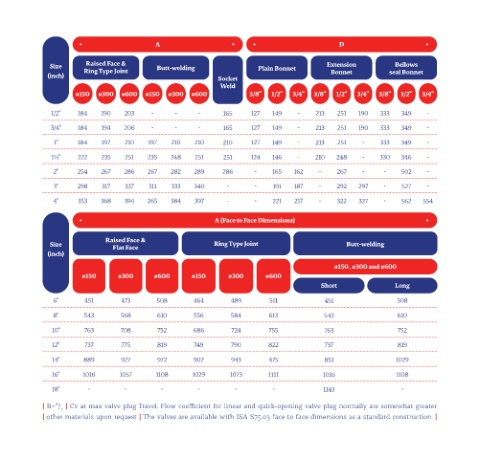

Page 12 - catalog CV

A D

Raised Face &
Size Ring Type Joint Butt-welding Plain Bonnet Extension Bellows
(inch) Socket Bonnet seal Bonnet
Weld
#150 #300 #600 #150 #300 #600 3/8'' 1/2'' 3/4'' 3/8'' 1/2'' 3/4'' 3/8'' 1/2'' 3/4''

1/2'' 184 190 203 - - - 165 127 149 - 213 251 190 333 349 -

3/4'' 184 194 206 - - - 165 127 149 - 213 251 190 333 349 -
1'' 184 197 210 197 210 210 210 127 149 - 213 251 - 333 349 -

1½'' 222 235 251 235 248 251 251 124 146 - 210 248 - 330 346 -
2'' 254 267 286 267 282 289 286 - 165 162 - 267 - - 502 -

3'' 298 317 337 311 333 340 - - 191 187 - 292 297 - 527 -
4'' 353 368 394 265 384 397 - - 221 217 - 322 327 - 562 554

A (Face to Face Dimensions)

Raised Face &
Size Flat Face Ring Type Joint Butt-welding
(inch)
#150 , #300 and #600
#150 #300 #600 #150 #300 #600
Short Long
6'' 451 473 508 464 489 511 451 508

8'' 543 568 610 556 584 613 543 610
10'' 763 708 752 686 724 755 763 752

12'' 737 775 819 749 790 822 737 819
14'' 889 927 972 902 943 475 851 1029

16'' 1016 1057 1108 1029 1073 1111 1016 1108
18'' - - - - - - 1143 -

| B= / | Cv at max valve plug Travel. Flow coefficient for linear and quick-opening valve plug normally are somewhat greater
A
2
| other materials upon request | The valves are available with ISA S75.03 face to face dimensions as a standard construction. |
