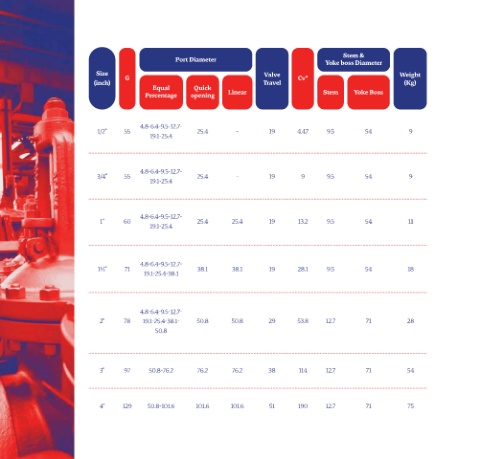

Page 14 - catalog CV

Stem &
Port Diameter Yoke boss Diameter

Size Valve Weight
(inch) G Travel Cv* (Kg)
Equal Quick
Percentage opening Linear Stem Yoke Boss

4.8-6.4-9.5-12.7-
1/2'' 55 25.4 - 19 4.47 9.5 54 9
19.1-25.4

4.8-6.4-9.5-12.7-
3/4'' 55 25.4 - 19 9 9.5 54 9
19.1-25.4

4.8-6.4-9.5-12.7-
1'' 60 25.4 25.4 19 13.2 9.5 54 11
19.1-25.4

4.8-6.4-9.5-12.7-
1½'' 71 38.1 38.1 19 28.1 9.5 54 18
19.1-25.4-38.1

4.8-6.4-9.5-12.7-
2'' 78 19.1-25.4-38.1- 50.8 50.8 29 53.8 12.7 71 28
50.8

3'' 97 50.8-76.2 76.2 76.2 38 114 12.7 71 54

4'' 129 50.8-101.6 101.6 101.6 51 190 12.7 71 75
