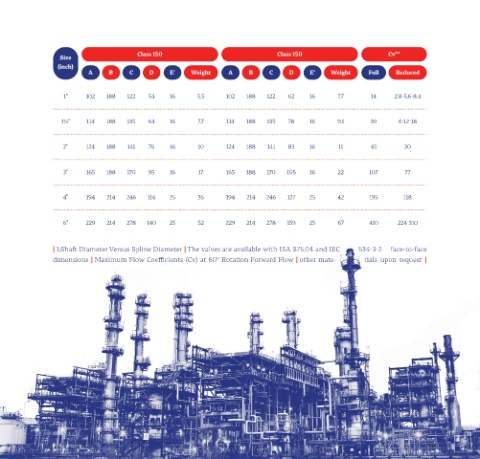

Page 18 - catalog CV

Size Class 150 Class 150 Cv**
(inch)
A B C D E 1 Weight A B C D E 1 Weight Full Reduced

1'' 102 188 122 54 16 5.5 102 188 122 62 16 7.7 14 2.8-5.6-8.4

1½'' 114 188 135 64 16 7.7 114 188 135 78 16 9.1 30 6-12-18

2'' 124 188 141 76 16 10 124 188 141 83 16 11 45 30

3'' 165 188 170 95 16 17 165 188 170 105 16 22 107 77

4'' 194 214 246 114 25 35 194 214 246 127 25 42 195 118

6'' 229 214 278 140 25 52 229 214 278 159 25 67 410 224-310

| 1:Shaft Diameter Versus Spline Diameter | The valves are available with ISA S75.04 and IEC 534-3-2 face-to-face
dimensions | Maximum Flow Coefficients (Cv) at 60º Rotation Forward Flow | other mate- rials upon request |
