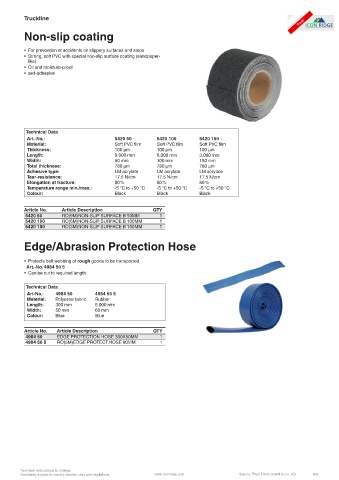

Page 862 - Icon Ridge Automotive & Truck Catalog

Truckline

Non-slip coating

• For prevention of accidents on slippery surfaces and steps
• Strong, soft PVC with special non-slip surface coating (sandpaper-
like)
• Oil and moisture-proof
• self-adhesive

Technical Data
Art.-No.: 5420 50 5420 100 5420 150
Material: Soft PVC film Soft PVC film Soft PVC film
Thickness: 100 μm 100 μm 100 μm
Length: 9,000 mm 6,000 mm 3,000 mm
Width: 50 mm 100 mm 150 mm
Total thickness: 780 μm 780 μm 780 μm
Adhesive type: LM acrylate LM acrylate LM acrylate
Tear-resistance: 17.5 N/cm 17.5 N/cm 17.5 N/cm
Elongation at fracture: 80 % 80 % 80 %
Temperature range min./max.: -5 °C to +50 °C -5 °C to +50 °C -5 °C to +50 °C
Colour: Black Black Black

Article No. Article Description QTY
5420 50 RO(9M)NON-SLIP SURFACE B 50MM 1
5420 100 RO(6M)NON-SLIP SURFACE B 100MM 1
5420 150 RO(3M)NON-SLIP SURFACE B 150MM 1

Edge/Abrasion Protection Hose

• Protects belt webbing of rough goods to be transported
Art.-No. 4984 50 5
• Can be cut to required length
Technical Data
Art-No.: 4984 50 4984 50 5
Material: Polyester fabric Rubber
Length: 300 mm 5.000 mm
Width: 50 mm 60 mm
Colour: Blue Blue

Article No. Article Description QTY
4984 50 EDGE PROTECTION HOSE 300X50MM 1
4984 50 5 RO(5M)EDGE PROTECT.HOSE 60MM 1

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 862
