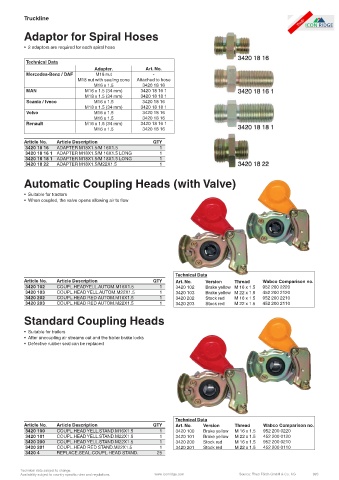

Page 920 - Icon Ridge Automotive & Truck Catalog

Truckline

Adaptor for Spiral Hoses

• 2 adaptors are required for each spiral hose

Technical Data
Adapter. Art. No.
Mercedes-Benz / DAF M18 nut -
M18 nut with sealing cone Attached to hose
M16 x 1.5 3420 18 16
MAN M16 x 1.5 (34 mm) 3420 18 16 1
M18 x 1.5 (34 mm) 3420 18 18 1
Scania / Iveco M16 x 1.5 3420 18 16
M18 x 1.5 (34 mm) 3420 18 18 1
Volvo M16 x 1.5 3420 18 16
M16 x 1.5 3420 18 16
Renault M16 x 1.5 (34 mm) 3420 18 16 1
M16 x 1.5 3420 18 16
Article No. Article Description QTY
3420 18 16 ADAPTER M18X1.5/M 16X1.5 1
3420 18 16 1 ADAPTER M18X1.5/M 16X1.5 LONG 1
3420 18 18 1 ADAPTER M18X1.5/M 18X1.5 LONG 1
3420 18 22 ADAPTER M18X1.5/M22X1.5 1

Automatic Coupling Heads (with Valve)

• Suitable for tractors
• When coupled, the valve opens allowing air to flow

Technical Data
Article No. Article Description QTY Art. No. Version Thread Wabco Comparison no.
3420 102 COUPL.HEADYELL.AUTOM.M16X1.5 1 3420 102 Brake yellow M 16 x 1.5 952 200 2220
3420 103 COUPL.HEAD YELL.AUTOM.M22X1.5 1 3420 103 Brake yellow M 22 x 1.5 452 200 2120
3420 202 COUPL.HEAD RED AUTOM.M16X1.5 1 3420 202 Stock red M 16 x 1.5 952 200 2210
3420 203 COUPL.HEAD RED AUTOM.M22X1.5 1 3420 203 Stock red M 22 x 1.5 452 200 2110
Standard Coupling Heads

• Suitable for trailers
• After uncoupling air streams out and the trailer brake locks
• Defective rubber seal can be replaced

Technical Data
Article No. Article Description QTY Art. No. Version Thread Wabco Comparison no.
3420 100 COUPL.HEAD YELL.STAND.M16X1.5 1 3420 100 Brake yellow M 16 x 1.5 952 200 0220
3420 101 COUPL.HEAD YELL.STAND.M22X1.5 1 3420 101 Brake yellow M 22 x 1.5 452 200 0120
3420 200 COUPL.HEAD YELL.STAND.M22X1.5 1 3420 200 Stock red M 16 x 1.5 952 200 0210
3420 201 COUPL.HEAD RED STAND.M22X1.5 1 3420 201 Stock red M 22 x 1.5 452 200 0110
3420 4 REPLACE.SEAL.COUPL.HEAD STAND. 25

Technical data subject to change.
