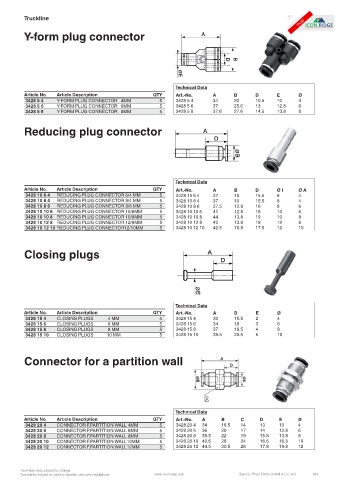

Page 923 - Icon Ridge Automotive & Truck Catalog

Truckline

Y-form plug connector

Technical Data
Article No. Article Description QTY Art.-No. A B D E Ø
3428 5 4 Y-FORM PLUG CONNECTOR 4MM 5 3428 5 4 34 20 10.5 10 4
3428 5 6 Y-FORM PLUG CONNECTOR 6MM 5 3428 5 6 37 25.6 13 12.8 6
3428 5 8 Y-FORM PLUG CONNECTOR 8MM 5 3428 5 8 37.6 27.6 14.5 13.8 8

Reducing plug connector

Technical Data
Article No. Article Description QTY Art.-No. A B D Ø I Ø A
3428 10 6 4 REDUCING PLUG CONNECTOR 6/4 MM 5 3428 10 6 4 37 10 15.5 6 4
3428 10 8 4 REDUCING PLUG CONNECTOR 8/4 MM 5 3428 10 8 4 37 10 15.5 8 4
3428 10 8 6 REDUCING PLUG CONNECTOR 8/6 MM 5 3428 10 8 6 37.5 12.8 16 8 6
3428 10 10 6 REDUCING PLUG CONNECTOR 10/6MM 5 3428 10 10 6 41 12.8 16 10 6
3428 10 10 8 REDUCING PLUG CONNECTOR 10/8MM 5 3428 10 10 8 44 13.8 19 10 8
3428 10 12 8 REDUCING PLUG CONNECTOR 12/8MM 5 3428 10 12 8 43 13.8 18 12 8
3428 10 12 10 REDUCING PLUG CONNECTOR12/10MM 5 3428 10 12 10 42.5 16.8 17.5 12 10

Closing plugs

Technical Data
Article No. Article Description QTY Art.-No. A D E Ø
3428 15 4 CLOSING PLUGS 4 MM 5 3428 15 4 30 15.5 2 4
3428 15 6 CLOSING PLUGS 6 MM 5 3428 15 6 34 18 3 6
3428 15 8 CLOSING PLUGS 8 MM 5 3428 15 8 37 18.5 4 8
3428 15 10 CLOSING PLUGS 10 MM 5 3428 15 10 39.5 20.5 5 10

Connector for a partition wall

Technical Data
Article No. Article Description QTY Art.-No. A B C D E Ø
3428 20 4 CONNECTOR F.PARTITION WALL 4MM 5 3428 20 4 34 16.5 14 13 10 4
3428 20 6 CONNECTOR F.PARTITION WALL 6MM 5 3428 20 6 36 20 17 14 12.8 6
3428 20 8 CONNECTOR F.PARTITION WALL 8MM 5 3428 20 8 39.5 22 19 15.8 13.8 8
3428 20 10 CONNECTOR F.PARTITION WALL10MM 5 3428 20 10 40.6 28 24 16.5 16.8 10
3428 20 12 CONNECTOR F.PARTITION WALL12MM 5 3428 20 12 44.5 30.5 26 17.8 19.8 12

Technical data subject to change.
