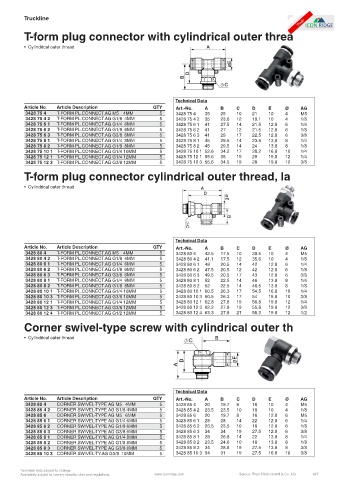

Page 927 - Icon Ridge Automotive & Truck Catalog
P. 927
Truckline
T-form plug connector with cylindrical outer threa
• Cylindrical outer thread
Technical Data
Article No. Article Description QTY Art.-No. A B C D E Ø AG
3428 75 4 T-FORM PL.CONNECT.AG M5 4MM 5 3428 75 4 35 25 10 21 10 4 M5
3428 75 4 2 T-FORM PL.CONNECT.AG G1/8 4MM 5 3428 75 4 2 35 23.6 12 18.1 10 4 1/8
3428 75 6 1 T-FORM PL.CONNECT.AG G1/4 6MM 5 3428 75 6 1 41 27.5 14 21.5 12,8 6 1/4
3428 75 6 2 T-FORM PL.CONNECT.AG G1/8 6MM 5 3428 75 6 2 41 27 12 21.5 12,8 6 1/8
3428 75 6 3 T-FORM PL.CONNECT.AG G3/8 6MM 5 3428 75 6 3 41 29 17 22.5 12,8 6 3/8
3428 75 8 1 T-FORM PL.CONNECT.AG G1/4 8MM 5 3428 75 8 1 45 29.5 14 23.5 13,8 8 1/4
3428 75 8 2 T-FORM PL.CONNECT.AG G1/8 8MM 5 3428 75 8 2 45 29.5 14 24 13,8 8 1/8
3428 75 10 1 T-FORM PL.CONNECT.AG G1/4 10MM 5 3428 75 10 1 52.6 34.2 17 28.2 16,8 10 1/4
3428 75 12 1 T-FORM PL.CONNECT.AG G1/4 12MM 5 3428 75 12 1 55.6 35 19 29 19,8 12 1/4
3428 75 12 3 T-FORM PL.CONNECT.AG G3/8 12MM 5 3428 75 12 3 55.6 34.5 19 28 19,8 12 3/8
T-form plug connector cylindrical outer thread, la
• Cylindrical outer thread
Technical Data
Article No. Article Description QTY Art.-No. A B C D E Ø AG
3428 80 4 T-FORM PL.CONNECT.AG M5 4MM 5 3428 80 4 42.5 17.5 10 38.5 10 4 M5
3428 80 4 2 T-FORM PL.CONNECT.AG G1/8 4MM 5 3428 80 4 2 41.1 17.5 12 35.6 10 4 1/8
3428 80 6 1 T-FORM PL.CONNECT.AG G1/4 6MM 5 3428 80 6 1 48 20.5 14 42 12.8 6 1/4
3428 80 6 2 T-FORM PL.CONNECT.AG G1/8 6MM 5 3428 80 6 2 47.5 20.5 12 42 12.8 6 1/8
3428 80 6 3 T-FORM PL.CONNECT.AG G3/8 6MM 5 3428 80 6 3 49.5 20.5 17 43 12.8 6 3/8
3428 80 8 1 T-FORM PL.CONNECT.AG G1/4 8MM 5 3428 80 8 1 52 22.5 14 46 13.8 8 1/4
3428 80 8 2 T-FORM PL.CONNECT.AG G1/8 8MM 5 3428 80 8 2 52 22.5 14 46.5 13.8 8 1/8
3428 80 10 1 T-FORM PL.CONNECT.AG G1/4 10MM 5 3428 80 10 1 60.5 26.3 17 54.5 16.8 10 1/4
3428 80 10 3 T-FORM PL.CONNECT.AG G3/8 10MM 5 3428 80 10 3 60.5 26.3 17 54 16.8 10 3/8
3428 80 12 1 T-FORM PL.CONNECT.AG G1/4 12MM 5 3428 80 12 1 62.8 27.8 19 56.8 19.8 12 1/4
3428 80 12 3 T-FORM PL.CONNECT.AG G3/8 12MM 5 3428 80 12 3 62.3 27.8 19 55.8 19.8 12 3/8
3428 80 12 4 T-FORM PL.CONNECT.AG G1/2 12MM 5 3428 80 12 4 63.3 27.8 21 55.3 19.8 12 1/2
Corner swivel-type screw with cylindrical outer th
• Cylindrical outer thread
Technical Data
Article No. Article Description QTY Art.-No. A B C D E Ø AG
3428 85 4 CORNER SWIVEL-TYPE AG M5 4MM 5 3428 85 4 20 19.7 8 16 10 4 M5
3428 85 4 2 CORNER SWIVEL-TYPE AG G1/8 4MM 5 3428 85 4 2 23.5 23.5 10 18 10 4 1/8
3428 85 6 CORNER SWIVEL-TYPE AG M5 6MM 5 3428 85 6 20 19.7 8 16 12.8 6 M5
3428 85 6 1 CORNER SWIVEL-TYPE AG G1/4 6MM 5 3428 85 6 1 28 28 14 22 12.8 6 1/4
3428 85 6 2 CORNER SWIVEL-TYPE AG G1/8 6MM 5 3428 85 6 2 23.5 23.5 10 18 12.8 6 1/8
3428 85 6 3 CORNER SWIVEL-TYPE AG G3/8 6MM 5 3428 85 6 3 34 34 19 27.5 12.8 6 3/8
3428 85 8 1 CORNER SWIVEL-TYPE AG G1/4 8MM 5 3428 85 8 1 28 26.8 14 22 13.8 8 1/4
3428 85 8 2 CORNER SWIVEL-TYPE AG G1/8 8MM 5 3428 85 8 2 23.5 24.6 10 18 13.8 8 1/8
3428 85 8 3 CORNER SWIVEL-TYPE AG G3/8 8MM 5 3428 85 8 3 34 28.8 19 27.5 13.8 8 3/8
3428 85 10 3 CORNER SWIVEL-TY.AG G3/8 10MM 5 3428 85 10 3 34 31 19 27.5 16.8 10 3/8
Technical data subject to change.
