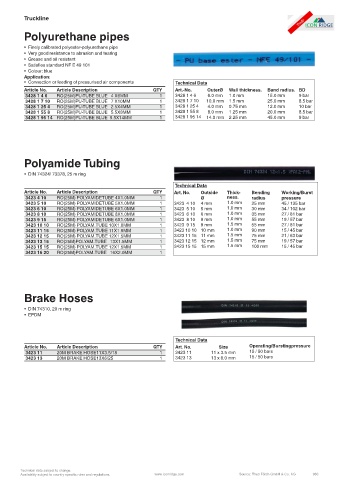

Page 930 - Icon Ridge Automotive & Truck Catalog

Truckline

Polyurethane pipes

• Finely calibrated polyester-polyurethane pipe
• Very good resistance to abrasion and tearing
• Grease and oil resistant
• Satisfies standard NF E 49 101
• Colour: blue
Application:
• Connection or feeding of pressurised air components Technical Data
Article No. Article Description QTY Art.-No. OuterØ Wall thickness. Band radius. BD
3428 1 4 6 RO(25M)PU-TUBE BLUE 4 X6MM 1 3428 1 4 6 6.0 mm 1.0 mm 15.0 mm 9 bar
3428 1 7 10 RO(25M)PU-TUBE BLUE 7 X10MM 1 3428 1 7 10 10.0 mm 1.5 mm 25.0 mm 8.5 bar
3428 1 25 4 RO(25M)PU-TUBE BLUE 2.5X4MM 1 3428 1 25 4 4.0 mm 0.75 mm 12.0 mm 10 bar
3428 1 55 8 RO(25M)PU-TUBE BLUE 5.5X8MM 1 3428 1 55 8 8.0 mm 1.25 mm 20.0 mm 8.5 bar
3428 1 95 14 RO(25M)PU-TUBE BLUE 9.5X14MM 1 3428 1 95 14 14.0 mm 2.25 mm 45.0 mm 9 bar

Polyamide Tubing

• DIN 74324/ 73378, 25 m ring

Technical Data
Article No. Article Description QTY Art. No. Outside Thick- Bending Working/Burst
3423 4 10 RO(25M) POLYAMIDETUBE 4X1.0MM 1 Ø ness. radius pressure
3423 5 10 RO(25M) POLYAMIDETUBE 5X1.0MM 1 3423 4 10 4 mm 1.0 mm 25 mm 45 / 135 bar
3423 6 10 RO(25M) POLYAMIDETUBE 6X1.0MM 1 3423 5 10 5 mm 1.0 mm 30 mm 34 / 102 bar
3423 8 10 RO(25M) POLYAMIDETUBE 8X1.0MM 1 3423 6 10 6 mm 1.0 mm 35 mm 27 / 81 bar
3423 9 15 RO(25M) POLYAMIDETUBE 6X1.0MM 1 3423 8 10 8 mm 1.0 mm 55 mm 19 / 57 bar
3423 10 10 RO(25M) POLYAM.TUBE 10X1.0MM 1 3423 9 15 9 mm 1.5 mm 55 mm 27 / 81 bar
3423 11 15 RO(25M) POLYAM.TUBE 11X1.5MM 1 3423 10 10 10 mm 1.0 mm 90 mm 15 / 45 bar
3423 12 15 RO(25M) POLYAM.TUBE 12X1.5MM 1 3423 11 15 11 mm 1.5 mm 75 mm 21 / 63 bar
3423 13 15 RO(25M)POLYAM.TUBE 13X1.5MM 1 3423 12 15 12 mm 1.5 mm 75 mm 19 / 57 bar
3423 15 15 RO(25M) POLYAM.TUBE 12X1.5MM 1 3423 15 15 15 mm 1.5 mm 100 mm 15 / 45 bar
3423 16 20 RO(25M)POLYAM.TUBE 16X2.0MM 1

Brake Hoses

• DIN 74310, 20 m ring
• EPDM

Technical Data
Article No. Article Description QTY Art. No. Size Operating/Burstingpressure
3423 11 20M BRAKE HOSE11X3.5/18 1 3423 11 11 x 3.5 mm 15 / 50 bars
3423 13 20M BRAKE HOSE13X6/25 1 3423 13 13 x 6.0 mm 15 / 50 bars

Technical data subject to change.
