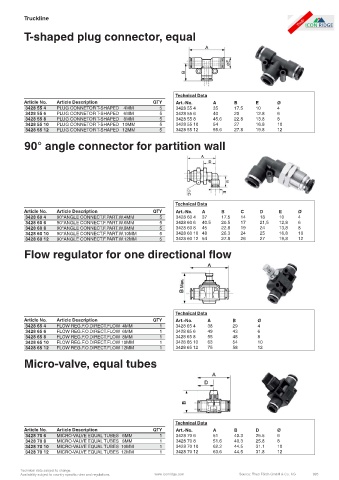

Page 926 - Icon Ridge Automotive & Truck Catalog

Truckline

T-shaped plug connector, equal

Technical Data
Article No. Article Description QTY Art.-No. A B E Ø
3428 55 4 PLUG CONNETOR T-SHAPED 4MM 5 3428 55 4 35 17.5 10 4
3428 55 6 PLUG CONNETOR T-SHAPED 6MM 5 3428 55 6 40 20 12.8 6
3428 55 8 PLUG CONNETOR T-SHAPED 8MM 5 3428 55 8 45.6 22.8 13.8 8
3428 55 10 PLUG CONNETOR T-SHAPED 10MM 5 3428 55 10 54 27 16.8 10
3428 55 12 PLUG CONNETOR T-SHAPED 12MM 5 3428 55 12 55.6 27.8 19.8 12
90° angle connector for partition wall

Technical Data
Article No. Article Description QTY Art.-No. A B C D E Ø
3428 60 4 90°ANGLE CONNECT.F.PART.W.4MM 5 3428 60 4 37 17.5 14 18 10 4
3428 60 6 90°ANGLE CONNECT.F.PART.W.6MM 5 3428 60 6 40.5 20.5 17 21,5 12,8 6
3428 60 8 90°ANGLE CONNECT.F.PART.W.8MM 5 3428 60 8 45 22.8 19 24 13,8 8
3428 60 10 90°ANGLE CONNECT.F.PART.W.10MM 5 3428 60 10 48 26.3 24 25 16,8 10
3428 60 12 90°ANGLE CONNECT.F.PART.W.12MM 5 3428 60 12 54 27.8 26 27 19,8 12
Flow regulator for one directional flow

Technical Data
Article No. Article Description QTY Art.-No. A B Ø
3428 65 4 FLOW REG.F.O.DIRECT.FLOW 4MM 1 3428 65 4 38 29 4
3428 65 6 FLOW REG.F.O.DIRECT.FLOW 6MM 1 3428 65 6 49 43 6
3428 65 8 FLOW REG.F.O.DIRECT.FLOW 8MM 1 3428 65 8 55 48 8
3428 65 10 FLOW REG.F.O.DIRECT.FLOW 10MM 1 3428 65 10 63 54 10
3428 65 12 FLOW REG.F.O.DIRECT.FLOW 12MM 1 3428 65 12 75 58 12

Micro-valve, equal tubes

Technical Data
Article No. Article Description QTY Art.-No. A B D Ø
3428 70 6 MICRO-VALVE EQUAL TUBES 6MM 1 3428 70 6 51 40.3 25.5 6
3428 70 8 MICRO-VALVE EQUAL TUBES 8MM 1 3428 70 8 51.6 40.3 25.8 8
3428 70 10 MICRO-VALVE EQUAL TUBES 10MM 1 3428 70 10 62.2 44.5 31.1 10
3428 70 12 MICRO-VALVE EQUAL TUBES 12MM 1 3428 70 12 63.6 44.5 31.8 12

Technical data subject to change.
