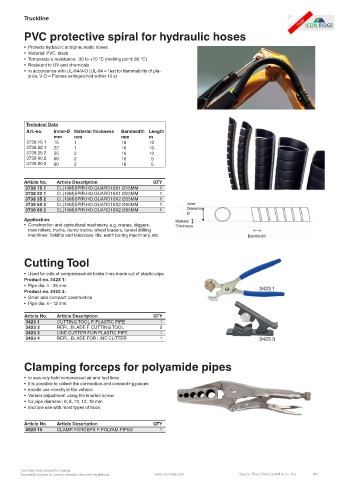

Page 931 - Icon Ridge Automotive & Truck Catalog

Truckline

PVC protective spiral for hydraulic hoses

• Protects hydraulic and pneumatic hoses
• Material: PVC, black
• Temperature resistance: -30 to +70 °C (melting point: 80 °C)
• Resistant to UV and chemicals
• In accordance with UL-94-V-O (UL-94 = Test for flammability of pla-
stics, V-O = Flames extinguished within 10 s)

Technical Data
Art.-no. Inner-Ø Material thickness Bandwidth Length
mm mm mm m
3738 15 1 15 1 16 10
3738 22 1 22 1 16 10
3738 35 2 35 2 16 10
3738 60 2 60 2 16 5
3738 80 2 80 2 16 5

Article No. Article Description QTY
3738 15 1 CL(10M)SPIR.HO.GUARD16X1 Ø15MM 1
3738 22 1 CL(10M)SPIR.HO.GUARD16X1 Ø22MM 1
3738 35 2 CL(10M)SPIR.HO.GUARD16X2 Ø35MM 1
3738 60 2 CL(10M)SPIR.HO.GUARD16X2 Ø60MM 1 Inner
3738 80 2 CL(10M)SPIR.HO.GUARD16X2 Ø80MM 1 Diameter-
Ø
Application: Material
• Construction and agricultural machinery, e.g. cranes, diggers, Thickness
road rollers, trucks, dump trucks, wheel loaders, tunnel drilling
machines, forklifts and telescope lifts, earth boring machinery, etc. Bandwidth

Cutting Tool

• Used for cuts of compressed-air brake lines made out of plastic-pipe
Product no. 3423 1:
• Pipe dia. 4 - 28 mm
Product no. 3423 3:
• Small and compact construction
• Pipe dia. 4 - 12 mm
Article No. Article Description QTY
3423 1 CUTTING TOOL F. PLASTIC PIPE 1
3423 2 REPL. BLADE F. CUTTING TOOL 2
3423 3 LINE CUTTER FOR PLASTIC PIPE 1
3423 4 REPL. BLADE FOR LINE CUTTER 1

Clamping forceps for polyamide pipes

• to securely hold compressed air and fuel lines
• it is possible to collect the connection and connecting pieces
• mobile use directly in the vehicle
• Vernier adjustment using the knurled screw
• for pipe diameter: 6, 8, 10, 12, 16 mm
• multiple use with most types of truck

Article No. Article Description QTY
4920 15 CLAMP. FORCEPS F. POLYAM.PIPES 1

Technical data subject to change.
