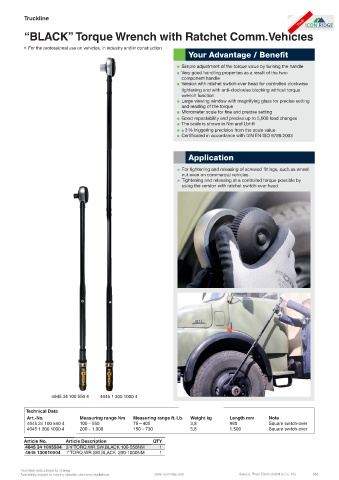

Page 936 - Icon Ridge Automotive & Truck Catalog

Truckline

“BLACK” Torque Wrench with Ratchet Comm.Vehicles
• For the professional use on vehicles, in industry and in construction
Your Advantage / Benefit

Simple adjustment of the torque value by turning the handle
Very good handling properties as a result of the two-
component handle
Version with ratchet switch-over head for controlled clockwise
tightening and with anti-clockwise blocking without torque
wrench function
Large viewing window with magnifying glass for precise setting
and reading of the torque
Micrometer scale for fine and precise setting
Good repeatability and precise up to 5,000 load changes
The scale is shown in Nm and Lbf-ft
± 3 % triggering precision from the scale value
Certificated in accordance with DIN EN ISO 6789:2003

Application

For tightening and releasing of screwed fittings, such as wheel
nut even on commercial vehicles
Tightening and releasing at a controlled torque possible by
using the version with ratchet switch-over head

4645 34 100 550 4 4645 1 300 1000 4

Technical Data
Art.-No. Measuring range Nm Measuring range ft. Lb. Weight kg Length mm Note
4645 34 100 550 4 100 – 550 75 – 405 3,8 960 Square switch-over
4645 1 300 1000 4 200 – 1.000 150 – 730 5,8 1.500 Square switch-over

Article No. Article Description QTY
4645 34 1005504 3/4"TORQ.WR.SW.BLACK 100-550NM 1
1"TORQ.WR.SW.BLACK 200-1000NM 1
4645 130010004

Technical data subject to change.
