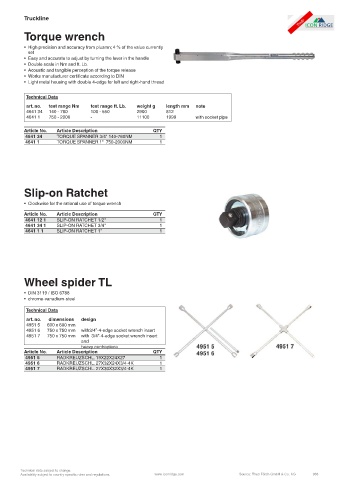

Page 938 - Icon Ridge Automotive & Truck Catalog

Truckline

Torque wrench

• High precision and accuracy from plusmn; 4 % of the value currently
set
• Easy and accurate to adjust by turning the lever in the handle
• Double scale in Nm and ft. Lb.
• Acoustic and tangible perception of the torque release
• Works manufacturer certificate according to DIN
• Light metal housing with double 4-edge for left and right-hand thread

Technical Data
art. no. test range Nm test range ft. Lb. weight g length mm note
4641 34 140 - 760 100 - 550 2900 812
4641 1 750 - 2000 - 11100 1998 with socket pipe

Article No. Article Description QTY
4641 34 TORQUE SPANNER 3/4" 140-760NM 1
4641 1 TORQUE SPANNER 1" 750-2000NM 1

Slip-on Ratchet

• Clockwise for the rational use of torque wrench
Article No. Article Description QTY
4641 12 1 SLIP-ON RATCHET 1/2" 1
4641 34 1 SLIP-ON RATCHET 3/4" 1
4641 1 1 SLIP-ON RATCHET 1" 1

Wheel spider TL

• DIN 3119 / ISO 6788
• chrome-vanadium-steel
Technical Data
art. no. dimensions design
4951 5 600 x 600 mm
4951 6 750 x 750 mm with3/4”-4-edge socket wrench insert
4951 7 750 x 750 mm with 3/4”-4-edge socket wrench insert
and
heavy centrepiece
Article No. Article Description QTY
4951 5 RADKREUZSCHL. 19X22X24X27 1
4951 6 RADKREUZSCHL. 27X32X24X3/4-4K 1
4951 7 RADKREUZSCHL. 27X30X32X3/4-4K 1

Technical data subject to change.
