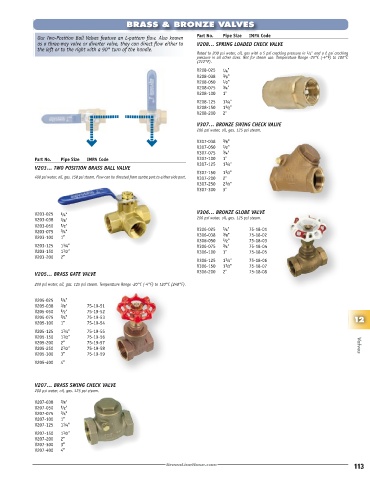

Page 115 - 2022FittingsCatalog

BRASS & BRONZE VALVES

Our Two-Position Ball Valves feature an L-pattern flow. Also known Part No. Pipe Size IMPA Code
as a three-way valve or diverter valve, they can direct flow either to V208… SPRING LOADED CHECK VALVE
the left or to the right with a 90° turn of the handle.
Rated to 200 psi water, oil, gas with a 5 psi cracking pressure in 1 ⁄4" and a 2 psi cracking
pressure in all other sizes. Not for steam use. Temperature Range -20°C (-4°F) to 100°C
(212°F).
V208-025 1 ⁄4 "
V208-038 3 ⁄8"
V208-050 1 ⁄2"
V208-075 3 ⁄4"
V208-100 1"
V208-125 1 1 ⁄4"
V208-150 1 1 ⁄2"
V208-200 2"
V307… BRONZE SWING CHECK VALVE
200 psi water, oil, gas. 125 psi steam.

V307-038 3 ⁄8"
V307-050 1 ⁄2"
V307-075 3 ⁄4"
Part No. Pipe Size IMPA Code V307-100 1"
V307-125 1 1 ⁄4"
V203… TWO POSITION BRASS BALL VALVE
V307-150 1 1 ⁄2"
400 psi water, oil, gas. 150 psi steam. Flow can be directed from centre port to either side port. V307-200 2"
V307-250 2 1 ⁄2"
V307-300 3"

V203-025 1 ⁄4" V306… BRONZE GLOBE VALVE
V203-038 3 ⁄8" 200 psi water, oil, gas. 125 psi steam.
V203-050 1 ⁄2" 1 ⁄4"
V203-075 3 ⁄4" V306-025 3 ⁄8" 75-18-01
V203-100 1" V306-038 75-18-02
V306-050 1 ⁄2" 75-18-03
V203-125 1 1 ⁄4" V306-075 3 ⁄4" 75-18-04
V203-150 1 1 ⁄2" V306-100 1" 75-18-05
V203-200 2"
V306-125 1 1 ⁄4" 75-18-06
V306-150 1 1 ⁄2" 75-18-07
V205… BRASS GATE VALVE V306-200 2" 75-18-08
200 psi water, oil, gas. 125 psi steam. Temperature Range -20°C (-4°F) to 120°C (248°F).

V205-025 1 ⁄4"
V205-038 3 ⁄8" 75-19-51
V205-050 1 ⁄2" 75-19-52
V205-075 3 ⁄4" 75-19-53 12
V205-100 1" 75-19-54
V205-125 1 1 ⁄4" 75-19-55
V205-150 1 1 ⁄2" 75-19-56
V205-200 2" 75-19-57 Valves
V205-250 2 1 ⁄2" 75-19-58
V205-300 3" 75-19-59
V205-400 4"

V207… BRASS SWING CHECK VALVE
200 psi water, oil, gas. 125 psi steam.
V207-038 3 ⁄8"
V207-050 1 ⁄2"
V207-075 3 ⁄4"
V207-100 1"
V207-125 1 1 ⁄4"
V207-150 1 1 ⁄2"
V207-200 2"
V207-300 3"
V207-400 4"
