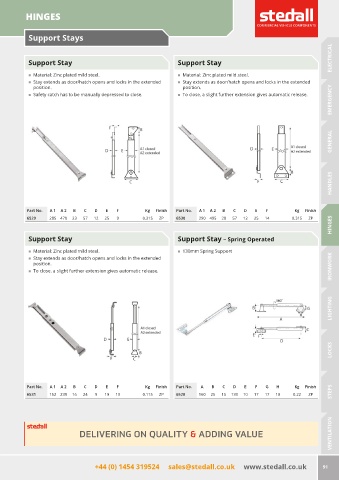

P. 93

HINGES



           Support Stays

                                                                                                                     ELECTRICAL

           Support Stay                                        Support Stay

           „  Material: Zinc plated mild steel.                „  Material: Zinc plated mild steel.
           „  Stay extends as door/hatch opens and locks in the extended   „  Stay extends as door/hatch opens and locks in the extended
             position.                                           position.
                                                                                                                     EMERGENCY
           „  Safety catch has to be manually depressed to close.  „  To close, a slight further extension gives automatic release.





                                                                                                                     GENERAL








                                                                                                                     HANDLES






          Part No.  A 1  A 2  B  C  D  E  F         Kg  Finish  Part No.  A 1  A 2  B  C  D  E  F       Kg  Finish
          6529    285 470  23  57  12  25  9       0.315  ZP   6530    290 495  28  57  12  25  14      0.315  ZP
                                                                                                                     HINGES

           Support Stay                                        Support Stay — Spring Operated


           „  Material: Zinc plated mild steel.                „  130mm Spring Support
           „  Stay extends as door/hatch opens and locks in the extended
             position.                                                                                               IRONWORK
           „  To close. a slight further extension gives automatic release.



                                                                                                                     LIGHTING








                                                                                                                     LOCKS







          Part No.  A 1  A 2  B  C  D  E  F         Kg  Finish  Part No.  A  B  C  D   E   F  G   H     Kg  Finish
          6531    152 239  16  24  9  19  13       0.115  ZP   6528    160  25  15  130  10  17  17  18  0.22  ZP    STEPS






                             DELIVERING ON QUALITY & ADDING VALUE                                                    VENTILATION





                                  +44 (0) 1454 319524     sales@stedall.co.uk     www.stedall.co.uk               91
