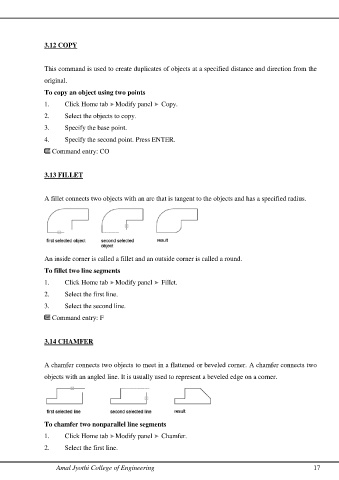

3.12 COPY

This command is used to create duplicates of objects at a specified distance and direction from the

original.
To copy an object using two points

1. Click Home tab Modify panel Copy.
2. Select the objects to copy.

3. Specify the base point.

4. Specify the second point. Press ENTER.
Command entry: CO

3.13 FILLET

A fillet connects two objects with an arc that is tangent to the objects and has a specified radius.

An inside corner is called a fillet and an outside corner is called a round.
To fillet two line segments

1. Click Home tab Modify panel Fillet.

2. Select the first line.
3. Select the second line.

Command entry: F

3.14 CHAMFER

A chamfer connects two objects to meet in a flattened or beveled corner. A chamfer connects two

objects with an angled line. It is usually used to represent a beveled edge on a corner.

To chamfer two nonparallel line segments

1. Click Home tab Modify panel Chamfer.
2. Select the first line.
