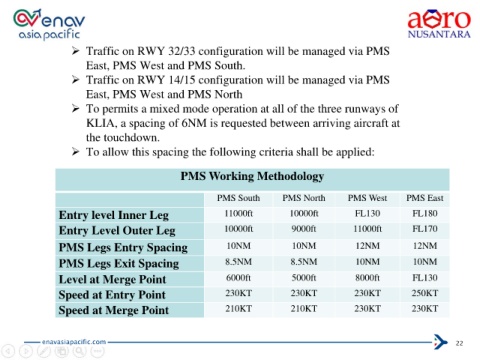

Page 22 - 1. 20201116 KL TMA - New Airspace Introduction_Neat

 Traffic on RWY 32/33 configuration will be managed via PMS

East, PMS West and PMS South.

 Traffic on RWY 14/15 configuration will be managed via PMS
East, PMS West and PMS North

 To permits a mixed mode operation at all of the three runways of

KLIA, a spacing of 6NM is requested between arriving aircraft at
the touchdown.

 To allow this spacing the following criteria shall be applied:

PMS Working Methodology

PMS South PMS North PMS West PMS East

Entry level Inner Leg 11000ft 10000ft FL130 FL180

Entry Level Outer Leg 10000ft 9000ft 11000ft FL170

PMS Legs Entry Spacing 10NM 10NM 12NM 12NM

PMS Legs Exit Spacing 8.5NM 8.5NM 10NM 10NM

Level at Merge Point 6000ft 5000ft 8000ft FL130

Speed at Entry Point 230KT 230KT 230KT 250KT

Speed at Merge Point 210KT 210KT 230KT 230KT
