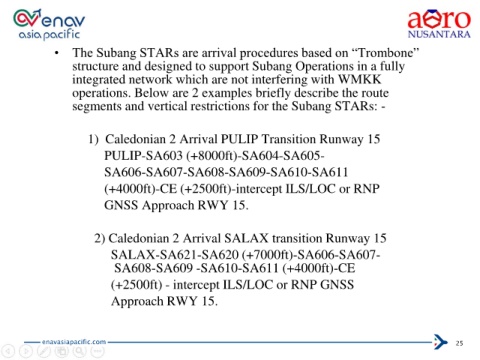

• The Subang STARs are arrival procedures based on “Trombone”

structure and designed to support Subang Operations in a fully
integrated network which are not interfering with WMKK

operations. Below are 2 examples briefly describe the route
segments and vertical restrictions for the Subang STARs: -

1) Caledonian 2 Arrival PULIP Transition Runway 15

PULIP-SA603 (+8000ft)-SA604-SA605-

SA606-SA607-SA608-SA609-SA610-SA611

(+4000ft)-CE (+2500ft)-intercept ILS/LOC or RNP

GNSS Approach RWY 15.

2) Caledonian 2 Arrival SALAX transition Runway 15

SALAX-SA621-SA620 (+7000ft)-SA606-SA607-

SA608-SA609 -SA610-SA611 (+4000ft)-CE

(+2500ft) - intercept ILS/LOC or RNP GNSS

Approach RWY 15.
